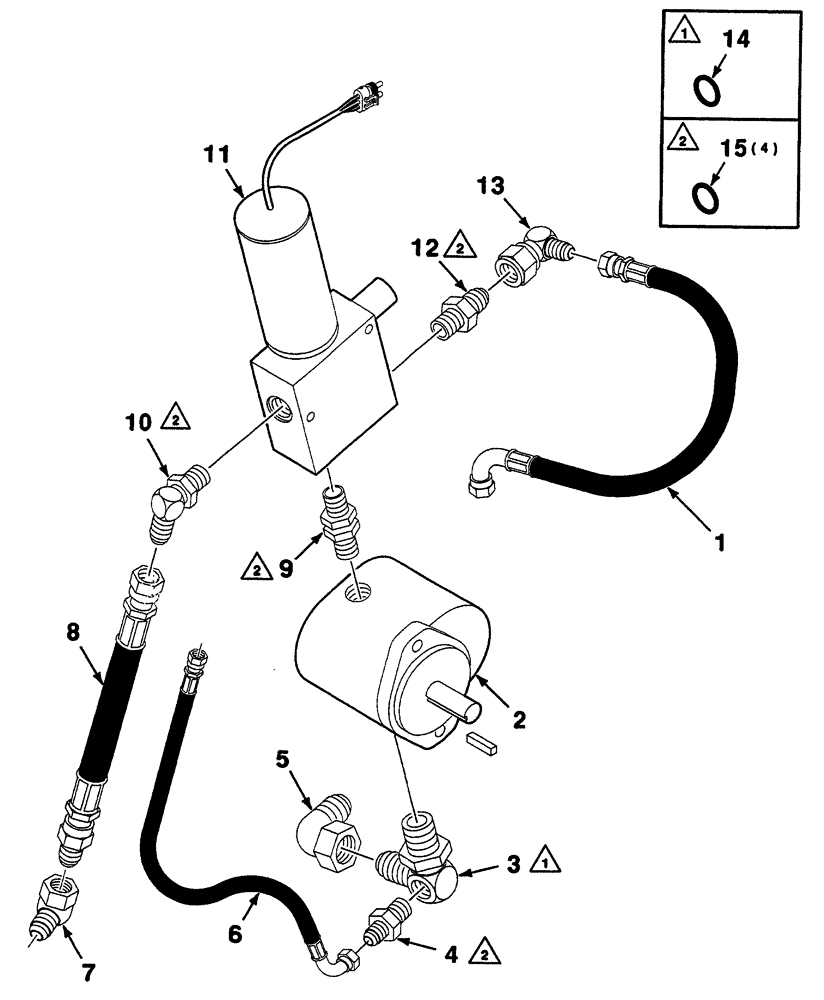

Запчасти Case IH 325 (8-04) - HYDRAULIC PUMP ASSEMBLY - LEFT (35) - HYDRAULIC SYSTEMS

1

700719557

HOSE

hydraulic

1шт.

2

700717303

PUMP, HYDRAULIC

draper, see Figure 8-10

1шт.

3

700151189

ELBOW

90°, Includes: Ref. 14

1шт.

4

8746018

ADAPTER

fitting, hydraulic, Includes: Ref. 15

1шт.

5

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

elbow 90°, swivel

1шт.

6

700719041

HOSE

hydraulic

1шт.

7

700701790

ELBOW

45°

1шт.

8

700719030

HYDRAULIC HOSE,0.75" ID x 16.54", SAE 100R1, SAE J517, SAE J516, SAE J343

hydraulic

1шт.

9

700717319

UNION

Includes: Ref. 15

1шт.

10

7046956

ELBOW

45°, Includes: Ref. 15

1шт.

11

700717307

VALVE

flow control, see Figure 8-14

1шт.

12

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Fitting, Str., Incl. Ref 15

1шт.

13

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

14

738476

O-RING

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.
