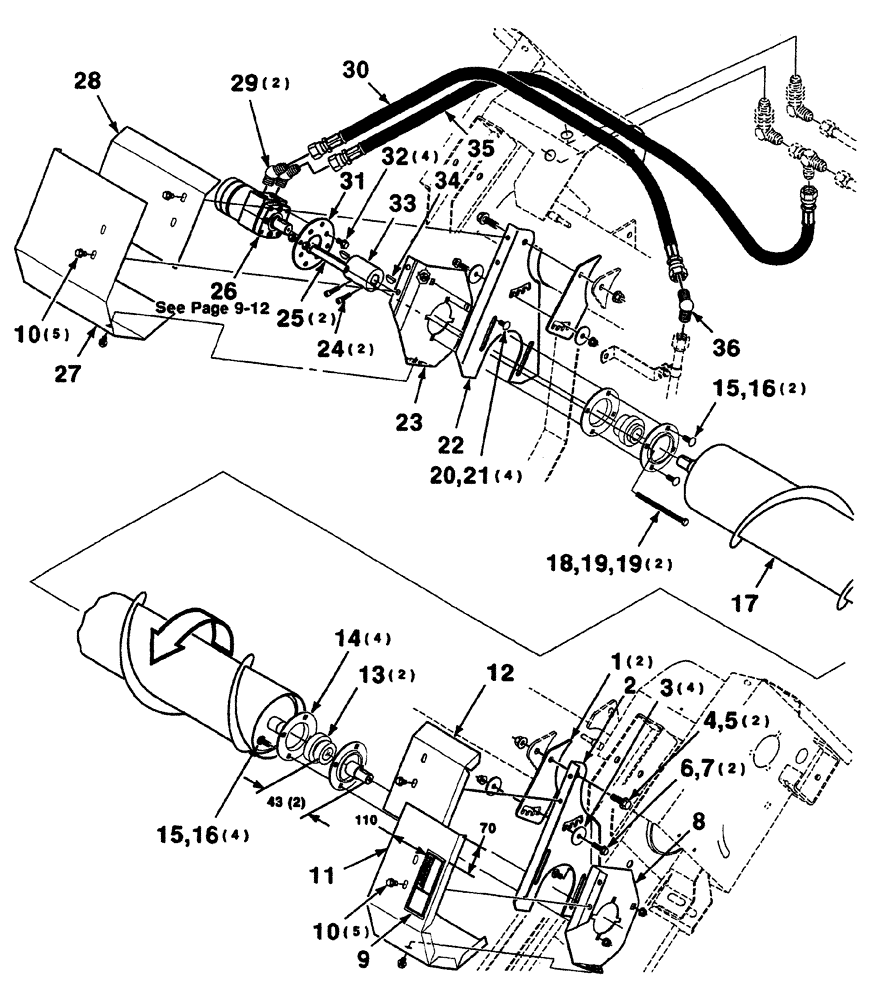

Запчасти Case IH 325 (9-10) - THIRD AUGER KIT (18 FOOT) (88) - ACCESSORIES

HK61005

KIT, third auger, complete

1шт.

1

700151190

SUPPORT

2шт.

2

700151182

SUPPORT

WA-shield, left

1шт.

3

51200237

WASHER

4шт.

4

8701237

BOLT

1/2-13 x 1-1/2 HFS GR8

2шт.

5

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

6

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 x 1-1/4 HFS GR8

2шт.

7

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

8

700150993

SUPPORT

WA-left

1шт.

9

700719016

DECAL

warning

1шт.

10

7883366

SCREW,Hex Washer, 3/8" - 16 x 1/2"

3/8-16 x 1/2 HWHMS

10шт.

11

700151193

PANEL

shield, left

1шт.

12

700152028

PANEL

shield, left

1шт.

13

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

spherical

2шт.

14

181383C1

FLANGED BEARING,72.01mm ID x 122.24mm OD

bearing

4шт.

15

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

6шт.

16

329-286

FLANGE NUT,Flg, 3/8"-16, G8

6шт.

17

700151195

AUGER

WA-third, 18'

1шт.

18

873216

SCREW,Hex, 3/16" - 16 x 6", Gr 5, Full Thd

3/8-16 x 6FTC

2шт.

19

425-106

NUT,3/8"-16, Cl 5

4шт.

20

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 RHSNB

4шт.

21

329-288

FLANGE NUT,Flg, 1/2"-13, G8

4шт.

22

700151187

SUPPORT

WA-shield, right

1шт.

23

700150994

SUPPORT

WA-right

1шт.

24

61-33120

HEX SOC SCREW,5/16"-18 x 1 1/4"

5/16-18 x 1-1/4 HSHCS SPL

2шт.

25

700152030

SPACER

tube

2шт.

26

700719269

MOTOR, HYDRAULIC

1шт.

27

700151194

PANEL

shield, right

1шт.

28

700152029

PANEL

shield, right

1шт.

29

7046956

ELBOW

45°

2шт.

30

700719580

HYDRAULIC HOSE,0.75" ID x 25.20", SAE 100R1, SAE J517

hydraulic

1шт.

31

700151185

PLATE

SUPPORT, motor

1шт.

32

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

33

700151186

CLAMP

1шт.

34

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

35

700718752

HYDRAULIC HOSE,0.75" ID x 32.28", SAE 100R1, SAE J517, SAE J516, SAE J343

hydraulic

1шт.

36

53425

SHAFT

90°

1шт.
