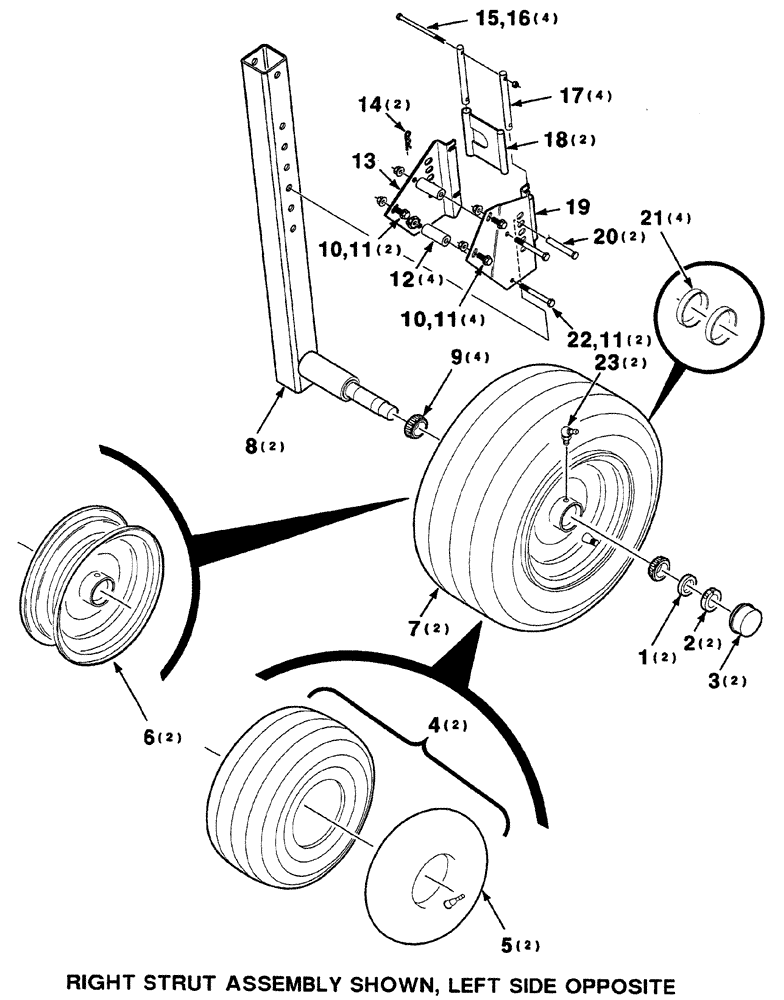

Запчасти Case IH 325 (9-06) - GAGE WHEEL KIT (88) - ACCESSORIES

HK61002

KIT, gage wheel, complete

1шт.

1

700148921

SPACER

2шт.

2

700706600

COLLAR

clamp

2шт.

3

700708708

CAP

grease

2шт.

4

700718995

TYRE/TIRE

TUBE ASSEMBLY, Includes: Ref. 5

2шт.

5

700719261

TUBE

2шт.

6

700719259

WHEEL

ASSEMBLY, Includes: bearing cups

2шт.

7

700717028

WHEEL ASSY.

TIRE, Includes: Ref. 4, 5, 6, 21 and 23

2шт.

8

700148918

STRUT

WA

2шт.

9

713818

ROLLER BEARING,34.938 mm ID x 65.113 mm OD x 18.796 mm

4шт.

10

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

6шт.

11

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

8шт.

12

700151081

SPACER

4шт.

13

700151083

SUPPORT

outer, right

1шт.

13

700151079

SUPPORT

outer, left

1шт.

14

T54573

PIN

.120 wire hair cotter

2шт.

15

413-6128

BOLT,Hex, 3/8" - 16 x 8", Gr 5

3/8-16 x 8 B

4шт.

16

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

4шт.

17

700147882

ROD

4шт.

18

700147878

TUBE

WA

2шт.

19

700151082

SUPPORT

WA- right

1шт.

19

700151077

SUPPORT

WA- left

1шт.

20

763870

CLEVIS PIN

5/8 x 4 pin

2шт.

21

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

4шт.

22

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1/2-13 x 4-1/2 C

2шт.

23

219-10

LUBE NIPPLE,1/4" - 28 NPTF

zerk1/4-28

2шт.
