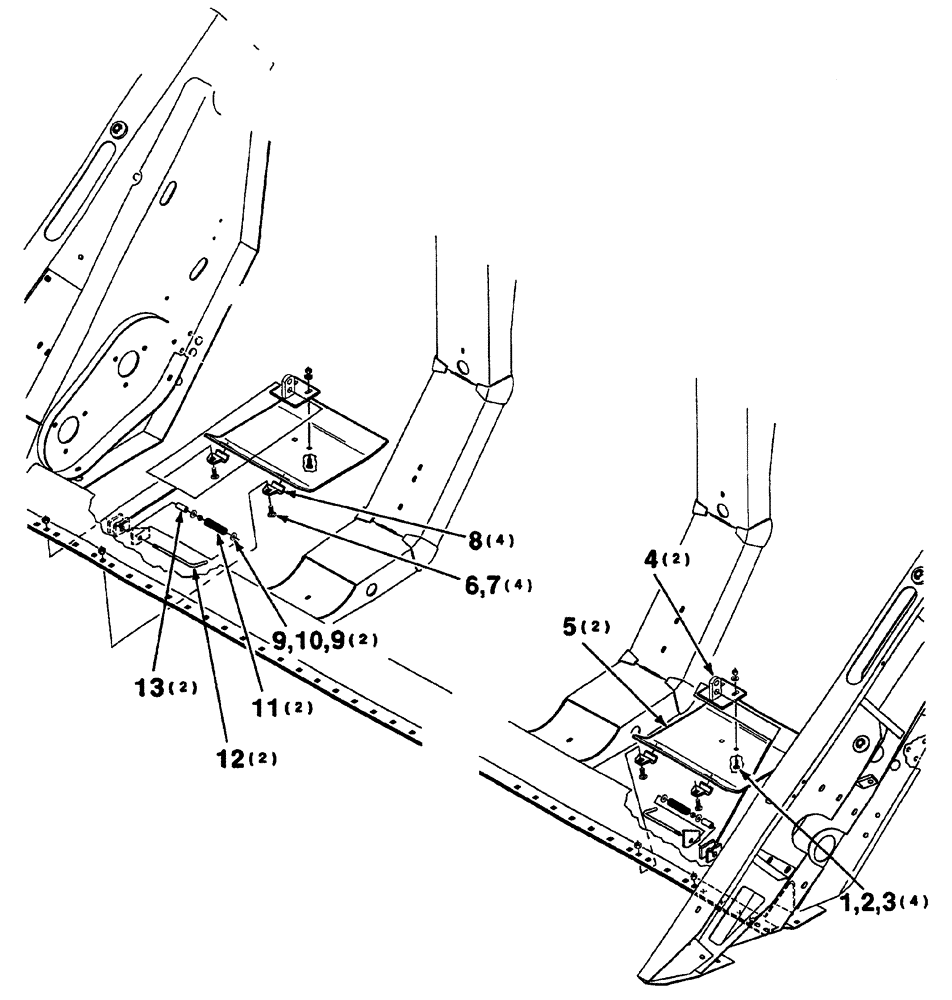

Запчасти Case IH 325 (7-12) - SKID SHOE ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

707042

BOLT,#3, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 plow

4шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 hardened plain

4шт.

3

425-106

NUT,3/8"-16, Cl 5

4шт.

4

700151974

PLATE

WA

2шт.

5

700151975

SHOE

skid

2шт.

6

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

4шт.

7

425-107

NUT,7/16"-14, G5

4шт.

8

6453799

CLIP

4шт.

9

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 wide plain

4шт.

10

425-105

NUT,5/16"-18, G5

2шт.

11

7758139

SPRING

compression

2шт.

12

700151984

HANDLE

2шт.

13

700151983

PIN

2шт.
