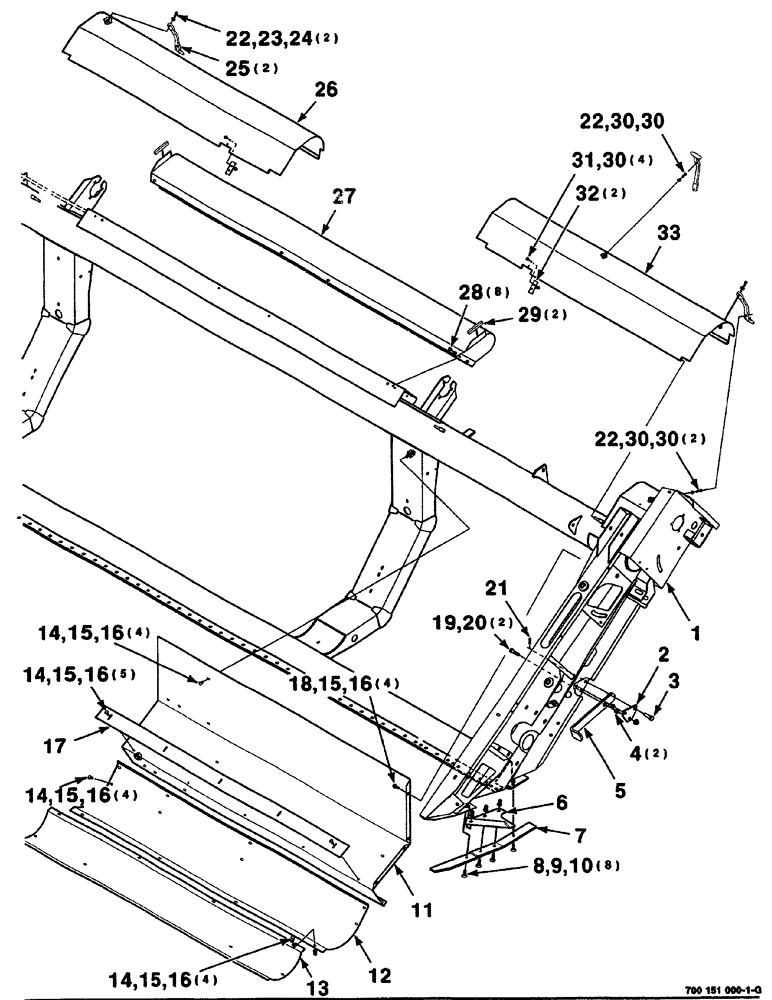

Запчасти Case IH 325 (7-08) - MAINFRAME ASSEMBLY - LEFT (18 FOOT) (58) - ATTACHMENTS/HEADERS

1

700151020

FRAME

main WA-18'

1шт.

2

700114715

COVER PLATE

1шт.

3

427-8136

CLEVIS PIN,1/2" x 1.360"

1/2 x 1-1/4

1шт.

4

6555320

BUSHING

2шт.

5

700151980

ARM

support

1шт.

6

700151141

GUARD

sicklehead, left

1шт.

7

700151139

SHOE

skid, left

1шт.

8

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

3/8-16 x 1-1/4 plow

8шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 hardened plain

8шт.

10

425-106

NUT,3/8"-16, Cl 5

8шт.

11

700151098

PAN

rear, left

1шт.

12

700151097

PAN

middle

1шт.

13

700151096

PAN

front

1шт.

14

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

17шт.

15

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

21шт.

16

425-105

NUT,5/16"-18, G5

21шт.

17

700151101

STRIPPER

1шт.

18

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

19

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

20

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

21

T54573

PIN

.120 wire hair cotter

1шт.

22

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 x 1 C

5шт.

23

495-21031

WASHER,1/4"

2шт.

24

1703354

NUT

1/4-20 HFTLN GR/G

2шт.

25

700717323

LATCH

rubber

2шт.

26

700151170

SHIELD

right

1шт.

27

700151995

SHIELD

center

1шт.

28

280-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

5/16-18 x 1/2 HWHTCTS

8шт.

29

700719573

ORNAMENTAL STRIP

trim, push ons

2шт.

30

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

10шт.

31

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

GR60M

4шт.

32

700147874

RETAINER

2шт.

33

700151169

SHIELD

left

1шт.
