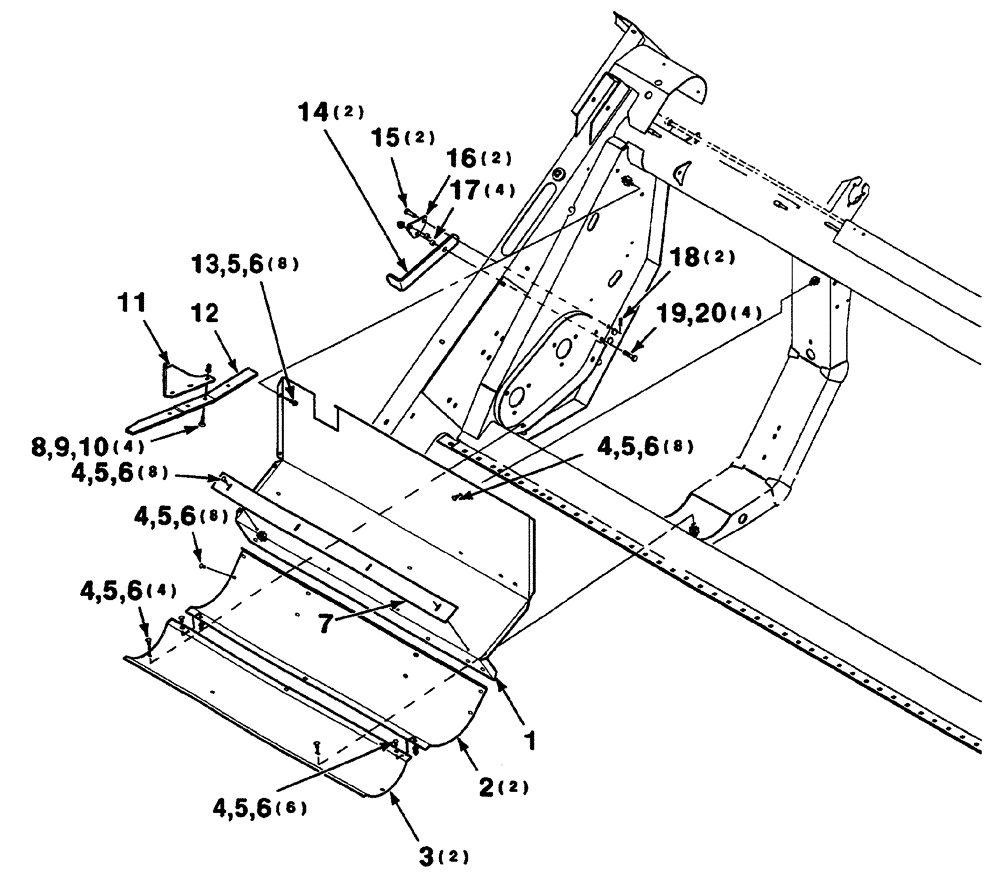

Запчасти Case IH 325 (7-06) - MAINFRAME ASSEMBLY - RIGHT (15 FOOT) (58) - ATTACHMENTS/HEADERS

1

700151058

PAN

rear, right

1шт.

2

700151091

PAN

middle

2шт.

3

700151090

PAN

front

2шт.

4

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

34шт.

5

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

42шт.

6

425-105

NUT,5/16"-18, G5

42шт.

7

700151095

STRIPPER

1шт.

8

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

3/8-16 x 1-1/4 plow

4шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 hardened plain

4шт.

10

425-106

NUT,3/8"-16, Cl 5

4шт.

11

700151143

GUARD

sicklehead, right

1шт.

12

700151140

SHOE

skid, right

1шт.

13

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

8шт.

14

700151980

ARM

support

2шт.

15

427-8136

CLEVIS PIN,1/2" x 1.360"

1/2 x 1-1/4

2шт.

16

700114715

COVER PLATE

2шт.

17

6555320

BUSHING

4шт.

18

T54573

PIN

.120 wire hair cotter

2шт.

19

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

20

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.
