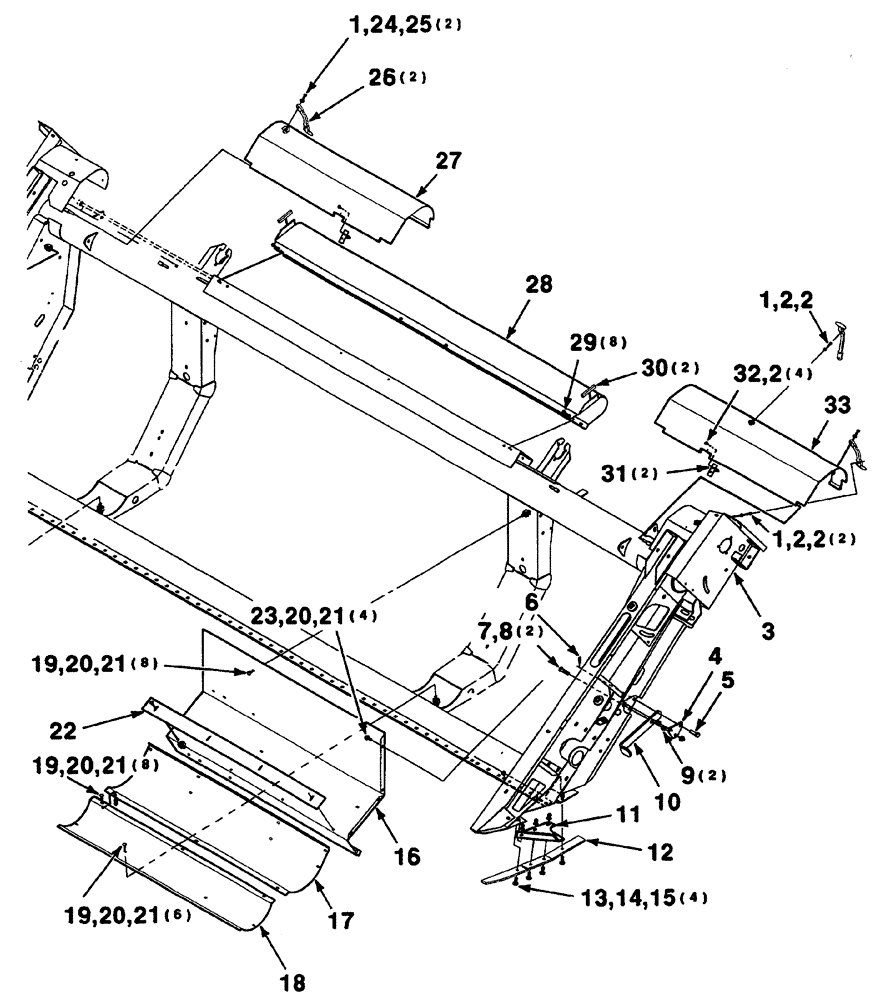

Запчасти Case IH 325 (7-04) - MAINFRAME ASSEMBLY - LEFT (15 FOOT) (58) - ATTACHMENTS/HEADERS

1

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 x 1 C

5шт.

2

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

10шт.

3

700151021

FRAME

main WA-15'

1шт.

4

700114715

COVER PLATE

1шт.

5

427-8136

CLEVIS PIN,1/2" x 1.360"

1/2 x 1-1/4

1шт.

6

T54573

PIN

.120 wire hair cotter

1шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

8

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

9

6555320

BUSHING

2шт.

10

700151980

ARM

support

1шт.

11

700151141

GUARD

sicklehead, left

1шт.

12

700151139

SHOE

skid, left

1шт.

13

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

3/8-16 x 1-1/4 plow

4шт.

14

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 hardened plain

4шт.

15

425-106

NUT,3/8"-16, Cl 5

4шт.

16

700151093

PAN

rear, left

1шт.

17

700151091

PAN

middle

1шт.

18

700151090

PAN

front

1шт.

19

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

22шт.

20

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

26шт.

21

425-105

NUT,5/16"-18, G5

26шт.

22

700151095

STRIPPER

1шт.

23

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

24

495-21031

WASHER,1/4"

2шт.

25

1703354

NUT

1/4-20 HFTLN GR/G

2шт.

26

700717323

LATCH

rubber

2шт.

27

700151172

SHIELD

right

1шт.

28

700151995

SHIELD

center

1шт.

29

280-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

5/16-18 x 1/2 HWHTCTS

8шт.

30

700719573

ORNAMENTAL STRIP

trim, push on

2шт.

31

700147874

RETAINER

2шт.

32

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

GR60M

4шт.

33

700151171

SHIELD

left

1шт.
