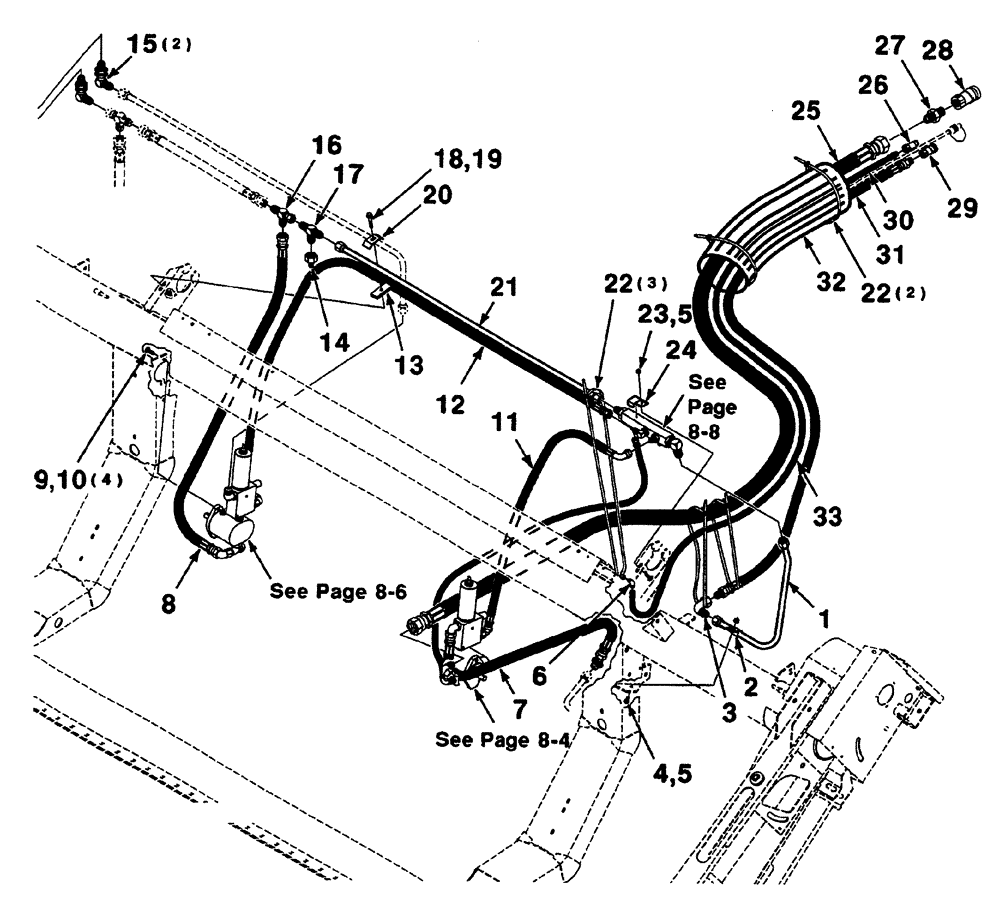

Запчасти Case IH 325 (8-02) - MAIN HYDRAULIC ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

700719022

PIPE

LINE, hydraulic

1шт.

2

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Line

1шт.

3

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

4

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

6

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

elbow-90°

1шт.

7

700719030

HYDRAULIC HOSE,0.75" ID x 16.54", SAE 100R1, SAE J517, SAE J516, SAE J343

hydraulic

1шт.

8

700716648

HYDRAULIC HOSE,0.75" ID x 29.13", SAE 100R1, SAE J517, SAE J516, SAE J343

hydraulic

1шт.

9

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

4шт.

10

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

11

700719557

HOSE

hydraulic

1шт.

12

700719556

HOSE

hydraulic

1шт.

13

700719890

PAD

1шт.

14

7791361

FITTING

adapter

1шт.

15

700717271

ELBOW

bulkhead, 90°

2шт.

16

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

17

218-596

TEE,1 1/16"-12 37 Degree

tee

1шт.

18

700711132

BOLT

3/8-16 x 2 HFSGR8

1шт.

19

231-5146

FLANGE NUT,3/8"-16

1шт.

20

6246995

CLAMP

1шт.

21

700717315

TUBE,19.05 mm OD, 2500 mm Length

LINE, hydraulic

1шт.

22

529070

CABLE TIE,368.3mm L

TIE, cable

5шт.

23

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

1шт.

24

700152026

CLAMP

manifold

1шт.

25

700717344

HOSE

hydraulic

1шт.

26

700716552

PIPE

quick coupler

1шт.

27

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Short Str Thd

1шт.

28

122179A1

COUPLING, BREAK AWAY

quick

1шт.

29

700716553

CROSSMEMBER

COUPLER,quick

1шт.

30

700719035

HYDRAULIC HOSE,0.38" ID x 84.65", SAE 100R1, SAE J517, SAE J516, SAE J343

hydraulic

1шт.

31

700719038

HYDRAULIC HOSE,0.75" ID x 59.06", SAE 100R1, SAE J517, SAE J516, SAE J343

hydraulic

1шт.

32

700717324

SLEEVE

nylon

1шт.

33

700719041

HOSE

hydraulic

1шт.
