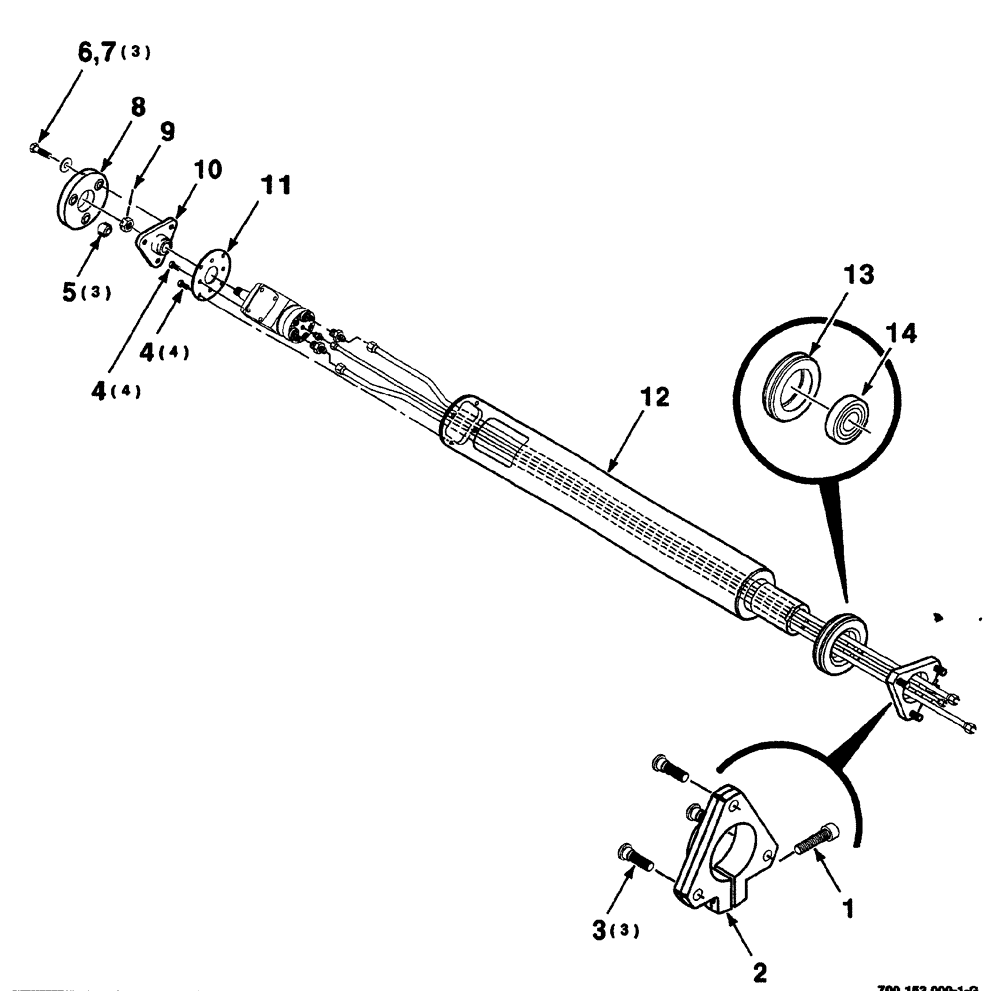

Запчасти Case IH 325 (6-24) - AUGER DRIVE ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

61-832

HEX SOC SCREW,1/2"-13 x 2"

1/2-13 x 2 HSHCS SPL

1шт.

2

700151104

COLLAR

clamp

1шт.

3

7026065

BOLT

wheel, 1/2-20 THD

3шт.

4

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

5

8027302

ANCHOR

center bonded joint

3шт.

6

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

7

700711557

WASHER

1/2 hardened wide plain

3шт.

8

700151111

PANEL

bulkhead

1шт.

9

432-816

COTTER PIN,1/8" x 1"

1шт.

10

700151102

HUB

auger drive

1шт.

11

700151105

PLATE

mounting

1шт.

12

700151107

TUBE

WA-support, auger

1шт.

13

700718645

BEARING HOUSING

bearing

1шт.

14

1315225C1

BALL BEARING,80 mm ID x 125 mm OD x 22 mm

1шт.
