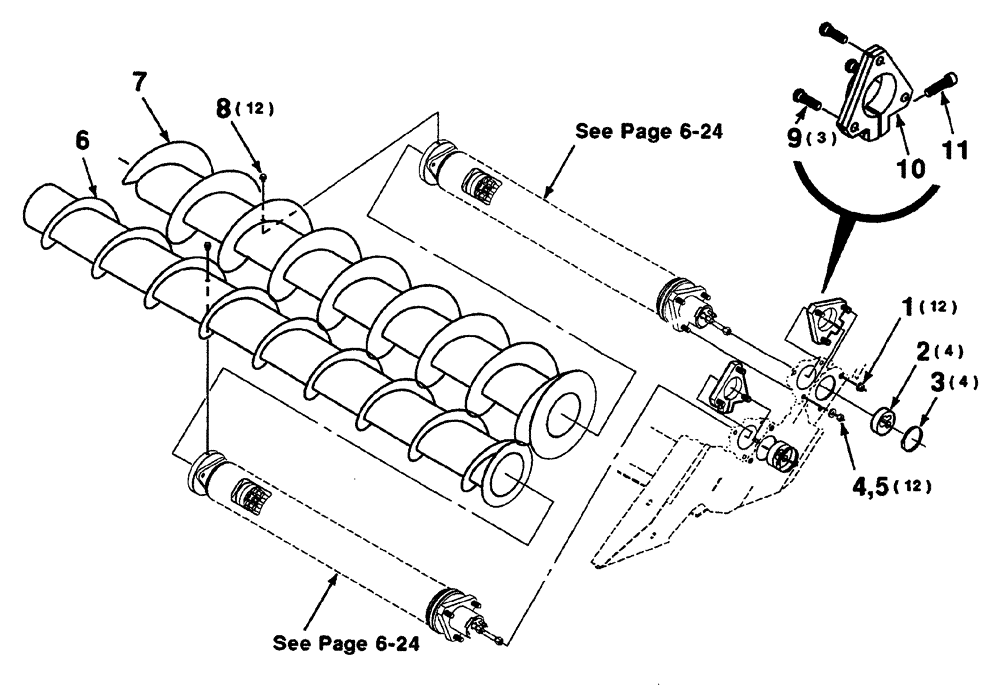

Запчасти Case IH 325 (6-20) - AUGER ASSEMBLY - LEFT (18 FOOT) (58) - ATTACHMENTS/HEADERS

1

700707867

NUT

1/2-20 HFTLN GR/G

12шт.

2

700719577

GROMMET

hydraulic line

4шт.

3

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

4шт.

4

425-118

NUT,1/2"-20, G5

12шт.

5

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 hardened plain

12шт.

6

700151128

AUGER

WA-front, left

1шт.

7

700151133

AUGER

WA-rear, left

1шт.

8

440-13812

SCREW,Cross Pan Hd, 3/8"-16 x 3/4"

3/8-16 x 3/4 CRPHMS GR60M

12шт.

9

7026065

BOLT

wheel, 1/2-20 THD

3шт.

10

700151104

COLLAR

clamp

1шт.

11

61-832

HEX SOC SCREW,1/2"-13 x 2"

1/2-13 x 2 HSHCS SPL

1шт.
