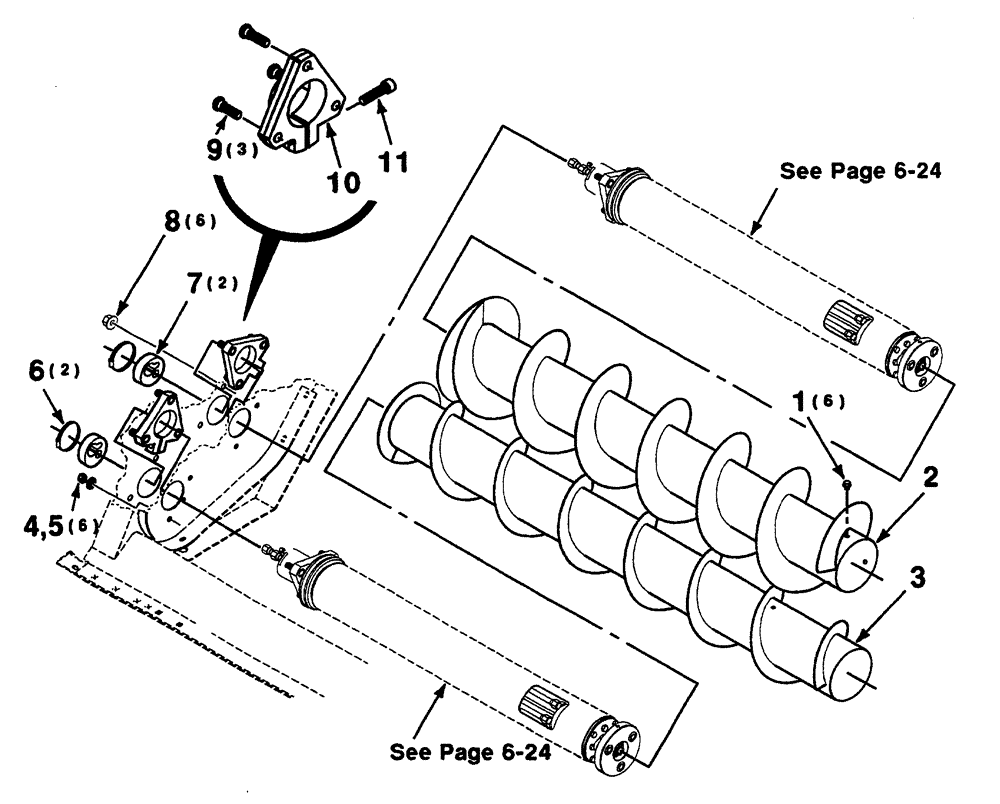

Запчасти Case IH 325 (6-18) - AUGER ASSEMBLY - RIGHT (15 FOOT) (58) - ATTACHMENTS/HEADERS

1

440-13812

SCREW,Cross Pan Hd, 3/8"-16 x 3/4"

3/8-16 x 3/4 CRPHMS GR60M

6шт.

2

700151125

AUGER

WA-rear, right

1шт.

3

700151119

AUGER

WA-front, right

1шт.

4

425-118

NUT,1/2"-20, G5

6шт.

5

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 hardened plain

6шт.

6

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

2шт.

7

700719577

GROMMET

hydraulic line

2шт.

8

700707867

NUT

1/2-20 HFTLN GR/G

6шт.

9

7026065

BOLT

wheel, 1/2-20 THD

3шт.

10

700151104

COLLAR

clamp

1шт.

11

61-832

HEX SOC SCREW,1/2"-13 x 2"

1/2-13 x 2 HSHCS SPL

1шт.
