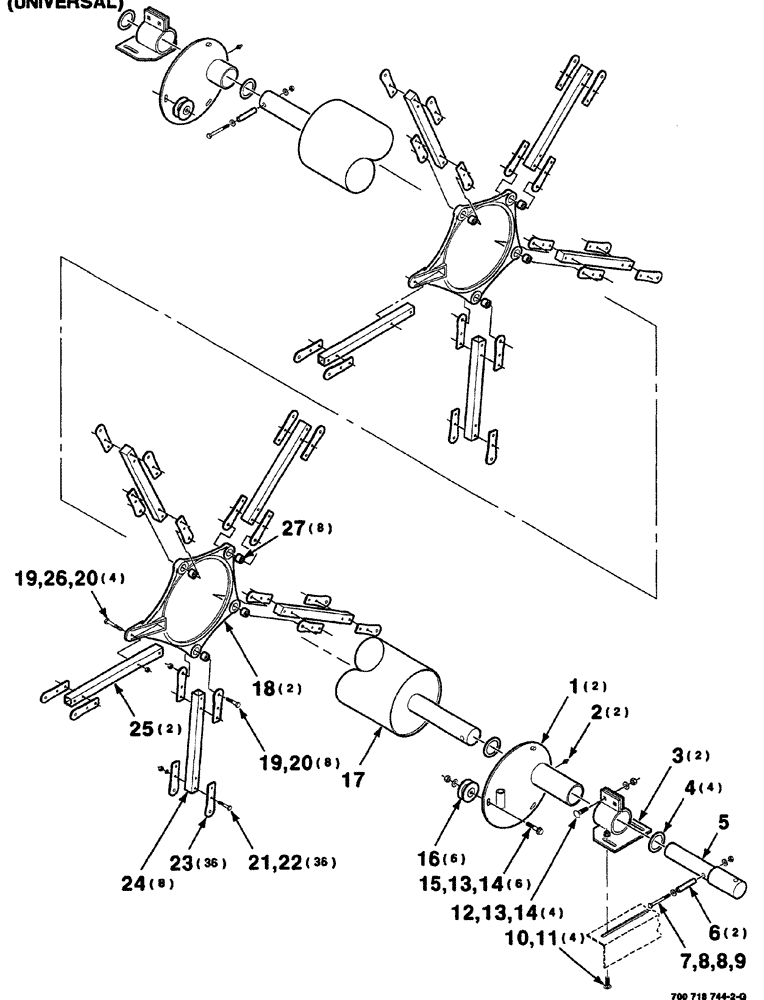

Запчасти Case IH 325 (6-14) - PICKUP REEL MOUNTING AND CAM ASSEMBLY - 18 FOOT (UNIVERSAL) (58) - ATTACHMENTS/HEADERS

1

700708886

SHAFT

control

2шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

3

700719185

CLAMP

mounting, reel

2шт.

4

700708889

WASHER

shaft

4шт.

5

700719186

SHAFT

stub

1шт.

6

700716876

PIN

1/2 x 2 spring

2шт.

7

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1шт.

8

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 hardened plain

2шт.

9

230-4214

LOCK NUT,1/4"-20, GA

1/4-20 HCLN GR/B

1шт.

10

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

4шт.

11

231-5146

FLANGE NUT,3/8"-16

4шт.

12

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

4шт.

13

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 hardened plain

10шт.

14

230-4216

LOCK NUT,3/8"-16, GA

10шт.

15

700711134

SCREW

3/8-16 x 1-3/4 HFS GR8

6шт.

16

700708888

ROLLER

control plate

6шт.

17

700719180

SHAFT

TUBE, reel, 18 foot

1шт.

18

700708869

SUPPORT

track

2шт.

19

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

12шт.

20

7704075

NUT

5/16-18 elastic

12шт.

21

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

36шт.

22

52396

NUT

1/4-20 KEPS

36шт.

23

700708864

COVER PLATE

end

36шт.

24

700708873

ARM

control, regular

8шт.

25

700708872

ARM

control, fixed

2шт.

26

700708890

WASHER

special

4шт.

27

700713276

BALL BEARING

ball

8шт.
