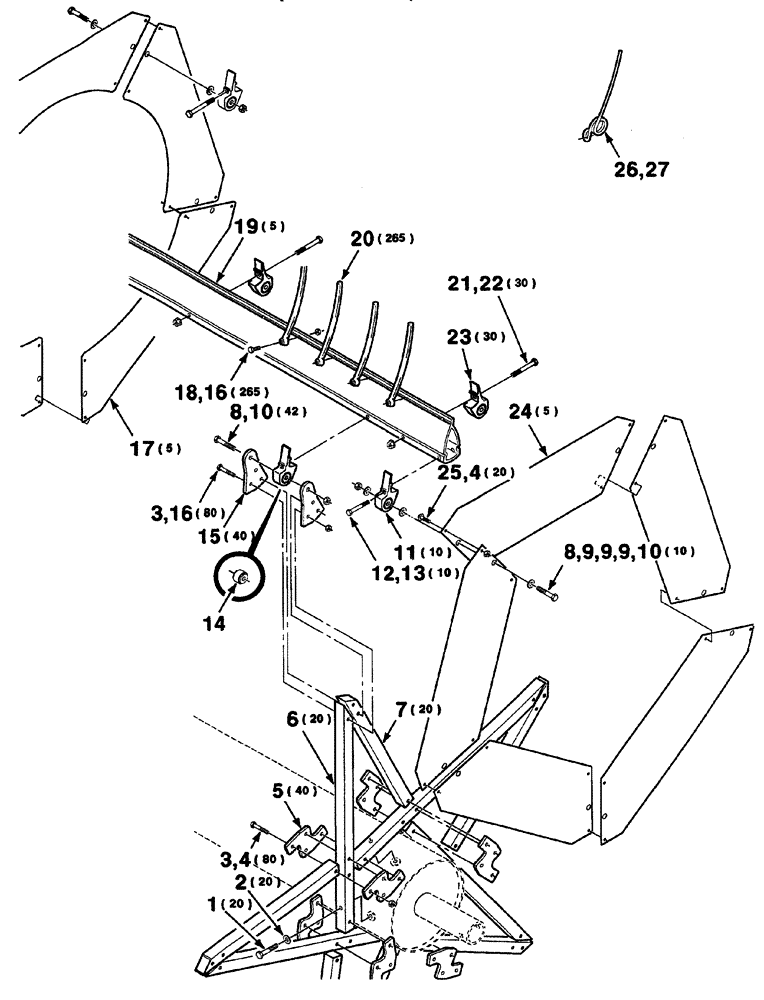

Запчасти Case IH 325 (6-12) - PICKUP REEL - 18 FOOT (UNIVERSAL) (58) - ATTACHMENTS/HEADERS

1

700708893

SCREW

5/16-18 x 1-3/4 lock

20шт.

2

700708890

WASHER

5/16 special

20шт.

3

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

160шт.

4

52396

NUT

1/4-20 KEPS

100шт.

5

700708865

COVER PLATE

inner

40шт.

6

700708870

ARM

bat

20шт.

7

700708871

ARM

arm, bat

20шт.

8

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

52шт.

9

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

30шт.

10

7704075

NUT

5/16-18 HHSN

52шт.

11

700719184

HOLDER

bearing, Includes: Ref. 14

10шт.

12

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

C

10шт.

13

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

10шт.

14

700713276

BALL BEARING

1шт.

15

700708863

COVER PLATE

tip

40шт.

16

231-1444

NUT,1/4"-20, GB

345шт.

17

700719586

SHIELD

end

5шт.

18

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 x 1 C

265шт.

19

700716863

BAT

18 foot

5шт.

20

700714195

TINE

plastic

265шт.

21

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

30шт.

22

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

30шт.

23

700716861

HOLDER

bearing, Includes: Ref. 14

30шт.

24

700716867

SHIELD

end

5шт.

25

175-454

SCREW,Phil Truss Hd, 1/4" - 20 x 3/8"

1/4-20 x 3/8 CRTHMS

20шт.

26

700712427

TINE

wire, optional, single

1шт.

27

700712428

TINE

wire, optional, box of 300

1шт.
