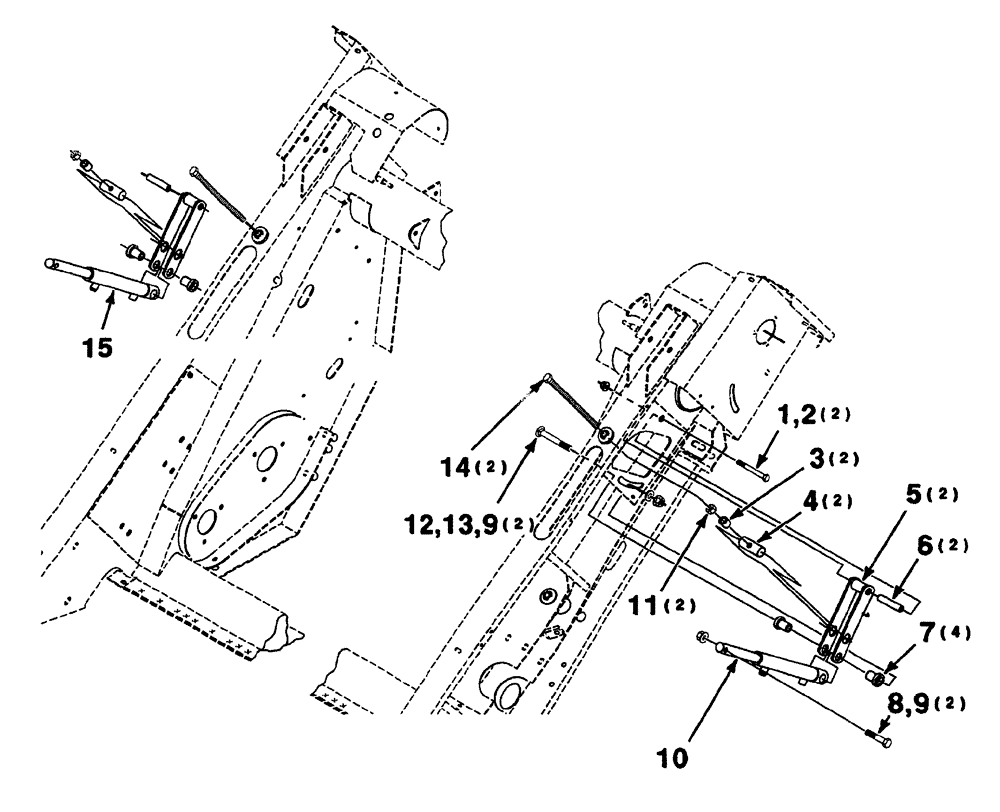

Запчасти Case IH 325 (6-06) - REEL LIFT ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1/2-13 x 4-1/2 C

2шт.

2

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

3

6168835

SPACER

2шт.

4

700148879

TRUNNION

2шт.

5

700148875

ARM

WA

2шт.

6

700148880

SPACER

2шт.

7

700148878

BUSHING

4шт.

8

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

9

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

4шт.

10

700717311

CYLINDER

hydraulic slave

1шт.

11

425-1010

NUT,5/8"-11, G5

2шт.

12

433-1080

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

5/8-11 x 5 RHSNB

2шт.

13

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

2шт.

14

702282

BOLT,Hex, 5/8" - 11 x 10", Gr 5

5/8-11 x 10 B SPCL

2шт.

15

700717310

CYLINDER

hydraulic master

1шт.
