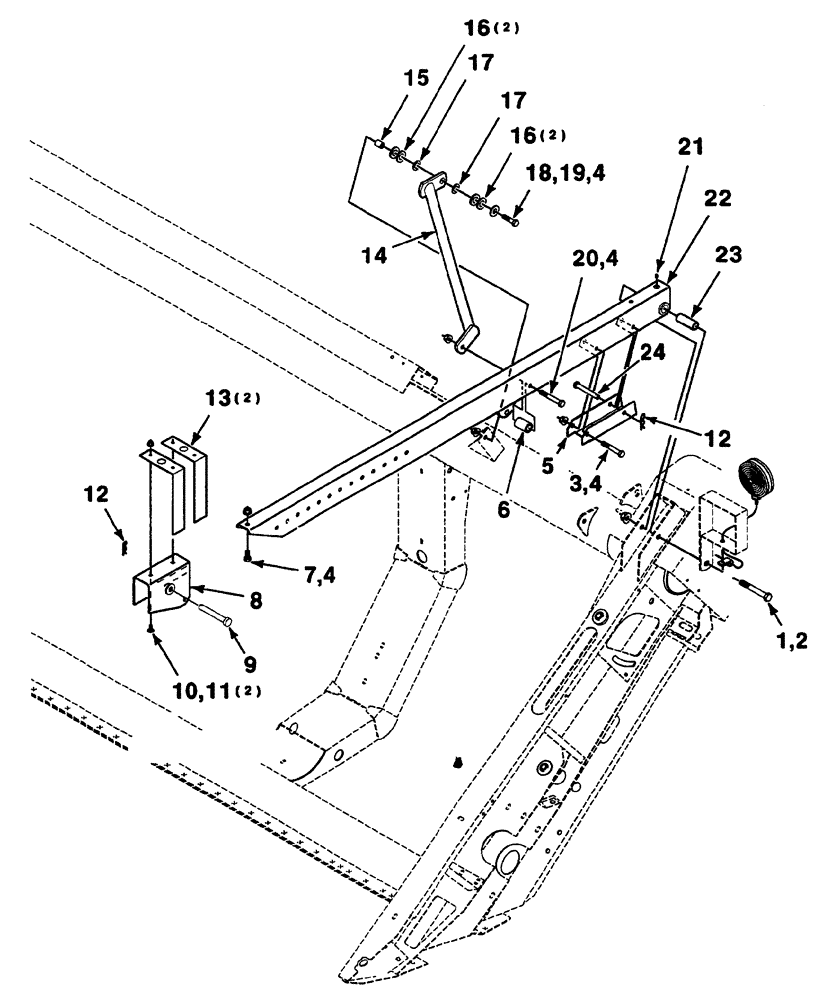

Запчасти Case IH 325 (6-02) - REEL ARM ASSEMBLY (LEFT) (58) - ATTACHMENTS/HEADERS

1

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

2

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

3

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1/2-13 x 3-1/4 C

1шт.

4

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

5

700147895

STOP

cylinder

1шт.

6

700122122

SPACER

TUBE

1шт.

7

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

8

700147908

CHANNEL

WA

1шт.

9

700148902

PIN

reel

1шт.

10

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

2шт.

11

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

12

T54573

PIN

.120 wire hairpin cotter

2шт.

13

700147899

ANGLE

decal

2шт.

14

700151103

SUPPORT

WA

1шт.

15

700134178

TUBE,0.532" ID, 0.75" OD

1шт.

16

705566

WASHER

3/4 hardened plain

4шт.

17

52183

BUSHING

3/4 x 18 GAUGE NRMB

2шт.

18

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

19

700711557

WASHER

1/2 hardened wide plain

1шт.

20

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

22

700147890

ARM

WA

1шт.

23

700116331

SPACER

BUSHING

1шт.

24

439-5848

HEADED PIN,1/2" x 3", G5

1/2 x 3

1шт.
