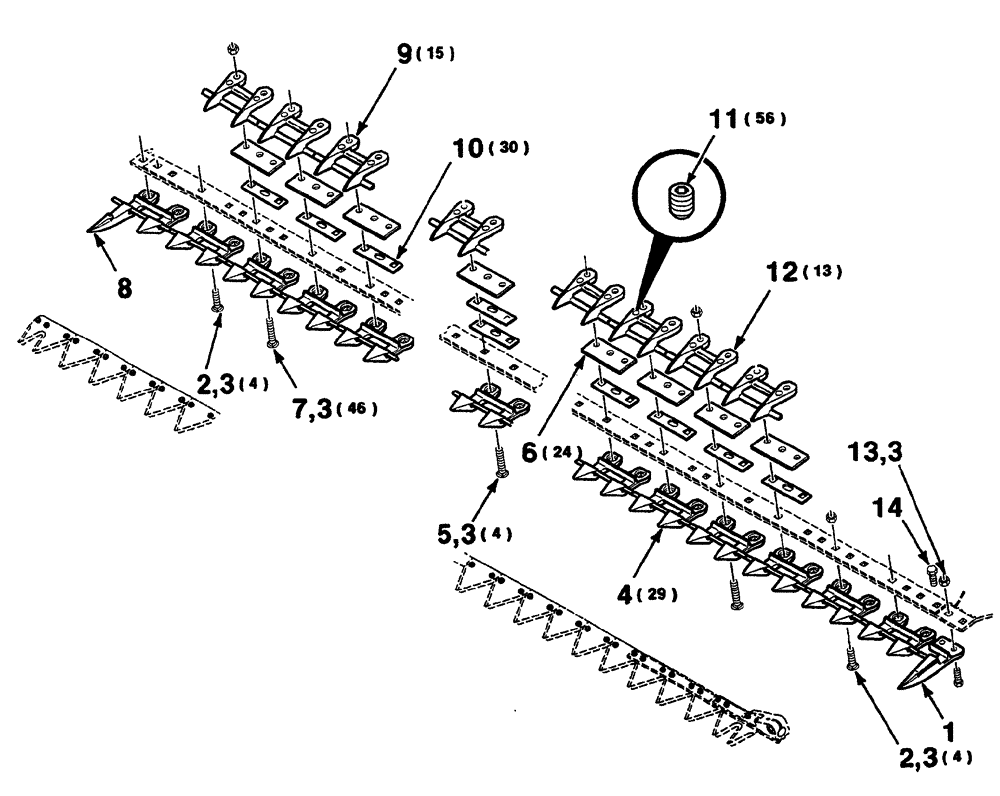

Запчасти Case IH 325 (3-16) - STUB GUARDS (15 FOOT) (58) - ATTACHMENTS/HEADERS

1

NLS

NO LONGER SERVICED

single, CLAMP - hose

1шт.

2

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 x 1-1/2 RHSNB

8шт.

3

425-107

NUT,7/16"-14, G5

59шт.

4

49312

GUARD

double, stub, (Packaged 25 per box )

29шт.

5

1707215

BOLT

7/16-14 x 2-1/2 RHSNB

4шт.

6

700106256

PLATE

upper

24шт.

7

433-736

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

7/16-14 x 2-1/4 RHSNB

46шт.

8

6210652

GUARD

double, end, right

1шт.

9

700133232

GUARD

double, stub, top adjustable

15шт.

10

700111956

PLATE

lower

30шт.

11

700703319

SET SCREW,1/2" - 13 x 1/2"

1/2-13 x 1/2 oval point socket set (with patch lock)

56шт.

12

700702736

GUARD

GUARD ASSEMBLY

13шт.

13

700706821

SCREW

7/16-20 x 1-1/2 FTC

1шт.

14

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

1шт.
