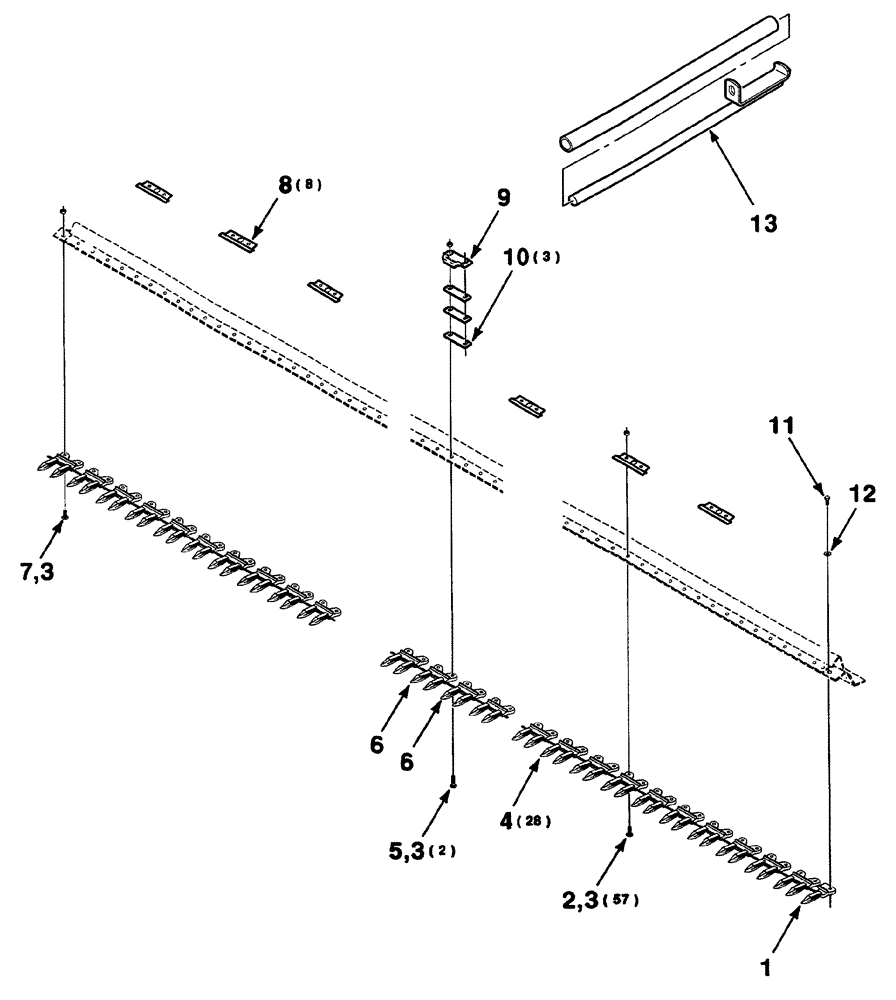

Запчасти Case IH 325 (3-12) - GUARD ASSEMBLY (15 FOOT) (58) - ATTACHMENTS/HEADERS

1

NLS

NO LONGER SERVICED

half, CLAMP - P-type

1шт.

2

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 x 1-1/2 RHSNB

57шт.

3

425-107

NUT,7/16"-14, G5

60шт.

4

700716292

GUARD

28шт.

5

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

7/16-14 x 1-3/4 RHSNB

2шт.

6

700707464

GUARD

double

2шт.

7

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

1шт.

8

700134757

PLATE

holddown

8шт.

9

6832703

CLAMP BRACKET

holddown

1шт.

10

6821268

SHIM

3шт.

11

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

1шт.

12

496-21047

WASHER

7/16 hardened plain

1шт.

13

6135081

GUARD

straightener

1шт.
