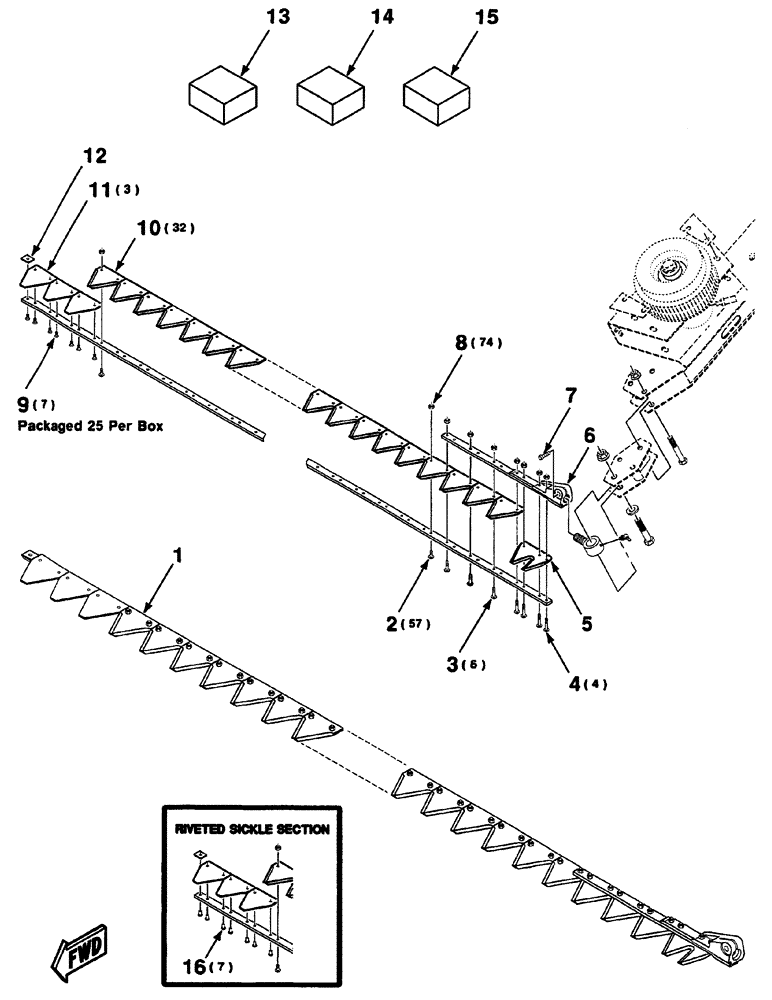

Запчасти Case IH 325 (3-08) - SICKLE ASSEMBLY (LEFT) (18 FOOT ONLY) (58) - ATTACHMENTS/HEADERS

1

700715808

KNIFE ASSY

SICKLE ASSEMBLY, left, complete

1шт.

2

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

#12-24 x 5/8, (Order Item 13)

57шт.

3

700714011

BOLT

#12-24 x 7/8, (Order Item 14)

6шт.

4

700705520

RIVET

#12-24 x 1-1/4, (Order Item 15)

4шт.

5

700705462

KNIFE SECTION

double end

1шт.

6

700111003

KNIFE HEAD

sickle WA

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C

1шт.

8

1954816C1

LOCK NUT

#12-24, (Packaged with bolts)

74шт.

9

700715160

HARDWARE,Flat Hd, CSK, #12 - 24 x 0.50", Spcl

12-24 x 1/2 HSFCSHCS, (Packaged 25 per box)

7шт.

10

NLS

NO LONGER SERVICED

SECTION, KNIFE sickle, top serrated, (Packaged 25 per box)

32шт.

11

V94766

SPARE PART

SECTION, KNIFE sickle, side serrated

3шт.

12

6821052

SHIM

1шт.

13

700705296

BOLT AND NUT

#12-24 x 5/8 bolt & locknut, (Packaged 50 per box)

1шт.

14

700709663

BOLT AND NUT

#12-24 x 7/8 locknut, (Packaged 25 per box)

1шт.

15

700706479

BOLT AND NUT

#12-24 x 1-1/4 bolt & locknut, (Packaged 25 per box)

1шт.

16

64923

RIVET

#5-1/2 x 7/16 oval head, (Packaged 1 pound per box)

7шт.
