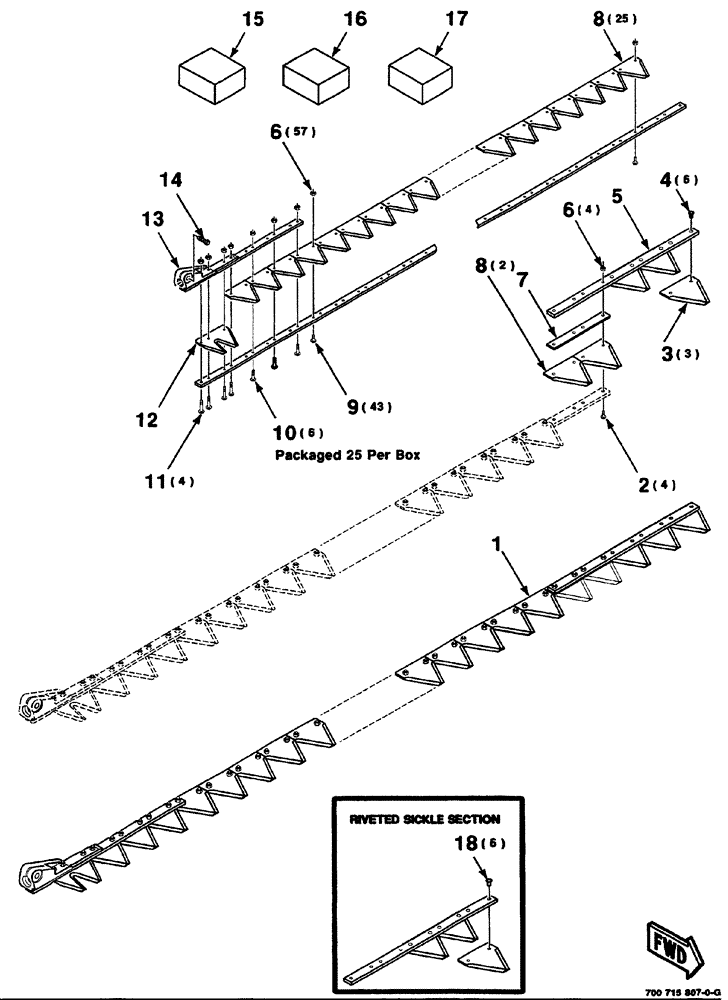

Запчасти Case IH 325 (3-06) - SICKLE ASSEMBLY (RIGHT) (15 FOOT ONLY) (58) - ATTACHMENTS/HEADERS

1

700715807

KNIFE ASSY

SICKLE ASSEMBLY, right, complete

1шт.

2

700705519

RIVET

#12-24 x 1, (Order Item 16)

4шт.

3

51200281

KNIFE SECTION

SECTION, KNIFE sickle, top serrated

3шт.

4

700715160

HARDWARE,Flat Hd, CSK, #12 - 24 x 0.50", Spcl

12-24 x 1/2 HSFCSHCS, (Packaged of 25 bolts & nuts )

6шт.

5

700715804

EXTENSION

sickle, complete

1шт.

6

1954816C1

LOCK NUT

#12-24, (Packaged with Items 15, 16 and 17)

61шт.

7

700116713

SPACER

sickle bar

1шт.

8

NLS

NO LONGER SERVICED

SECTION, KNIFE sickle, top serrated, (Packaged 25 per box)

27шт.

9

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

#12-24 x 5/8, (Order Item 15)

43шт.

10

700709663

BOLT AND NUT

12-24 x 7/8, (Packaged of 25 bolts & nuts )

6шт.

11

700705520

RIVET

#12-24 x 1-1/4, (Order Item 17)

4шт.

12

700705463

KNIFE SECTION

double end

1шт.

13

700116709

KNIFE HEAD

sickle WA

1шт.

14

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C

1шт.

15

700705296

BOLT AND NUT

#12-24 x 5/8 bolt & locknut, (Packaged 25 per box)

1шт.

16

700705297

KIT

#12-24 x 1 bolt, locknut & hex washer, (Packaged 25 per box)

1шт.

17

700706479

BOLT AND NUT

#12-24 x 1-1/4 bolt & locknut, (Packaged 25 per box)

1шт.

18

64923

RIVET

#5-1/2 x 7/16 oval head (Packaged 1 pound per box)

6шт.
