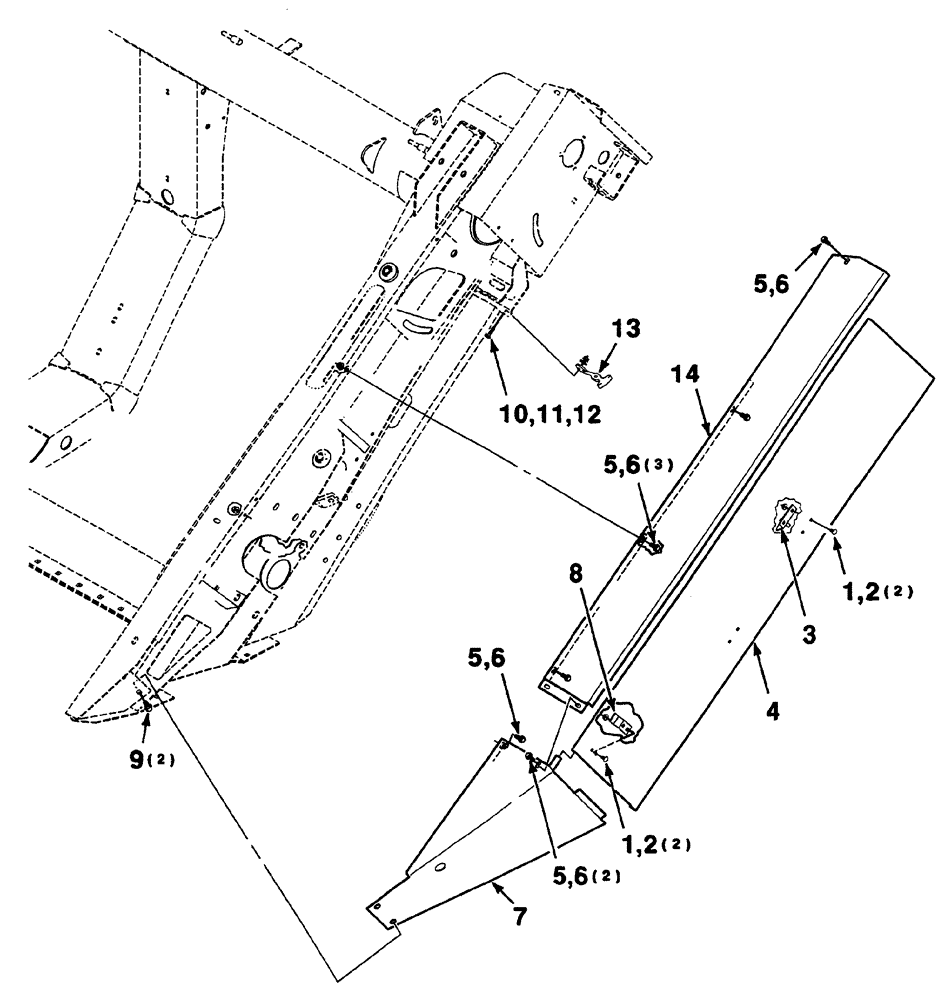

Запчасти Case IH 325 (2-24) - SWAYBAR SHIELDS ASSEMBLY (LEFT) (58) - ATTACHMENTS/HEADERS

1

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

1/4-20 x 1/2 RHSNB

4шт.

2

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

3

700147706

PIN

WA

1шт.

4

700151981

SHIELD

side

1шт.

5

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

7шт.

6

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

7шт.

7

700151145

SHIELD

WA-front, left

1шт.

8

700147709

ANGLE

1шт.

9

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

10

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 x 1 C

1шт.

11

495-21031

WASHER,1/4"

1шт.

12

1703354

NUT

1/4-20 HFTLN GR/G

1шт.

13

700717323

LATCH

rubber

1шт.

14

700147673

SHIELD

top, left

1шт.
