Запчасти Case IH 325 (2-20) - SWAYBAR ASSEMBLY (RIGHT) (58) - ATTACHMENTS/HEADERS

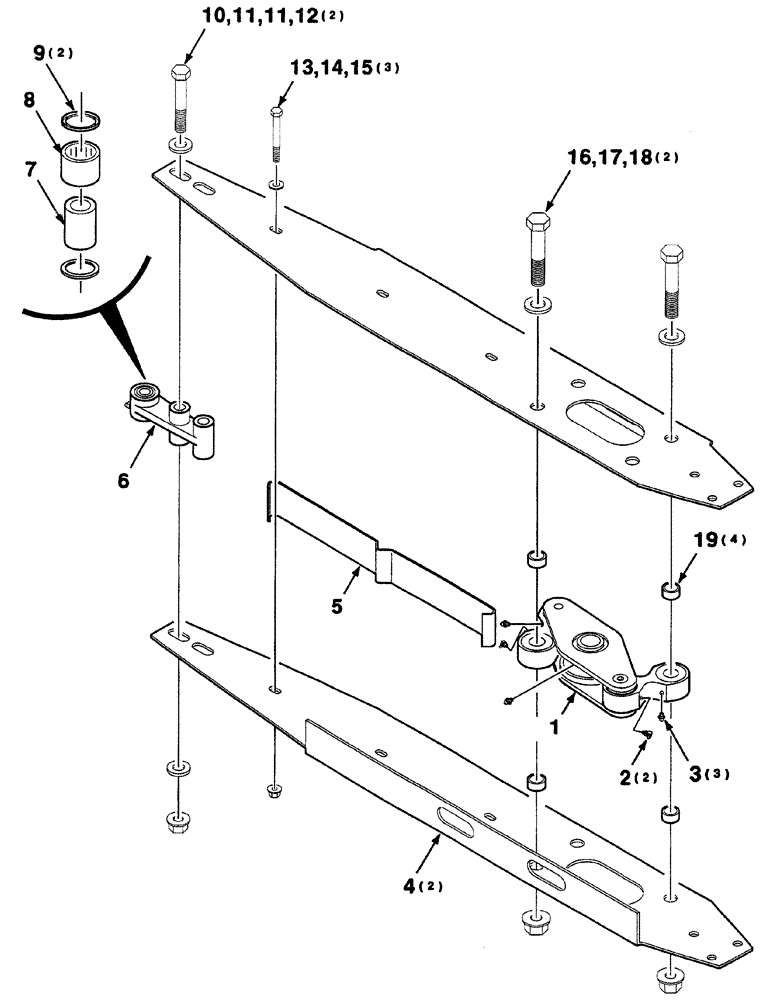

Схема запчастей Case IH 325 - (2-20) - SWAYBAR ASSEMBLY (RIGHT) (58) - ATTACHMENTS/HEADERS
13
5
6
19
8
16
3
12
11
2
4
18
7
1
14
11
10
15
17
9

Артикул

Название

Примечание

Количество

1

700147978

LINK

ASSEMBLY, see Figure 2-22

1шт.

2

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

4

700147977

BAR

sway

2шт.

5

700147980

SPACER

1шт.

6

700147982

LINK

ASSEMBLY, Includes: Ref. 7, 8 & 9

1шт.

7

700114599

BUSHING,16.27mm ID x 25.55mm OD x 38mm L

1шт.

8

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

needle

1шт.

9

697494R91

OIL SEAL

oil

2шт.

10

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8-11 x 3-3/4 C

2шт.

11

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

4шт.

12

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

13

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

3шт.

14

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 hardened plain

3шт.

15

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

3шт.

16

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

3/4-10 x 4 C

2шт.

17

705566

WASHER

3/4 hardened plain

2шт.

18

232-53112

FLANGE NUT,Flg, 3/4"-10

2шт.

19

700147981

SPACER

4шт.

Выбрано товаров: 19
