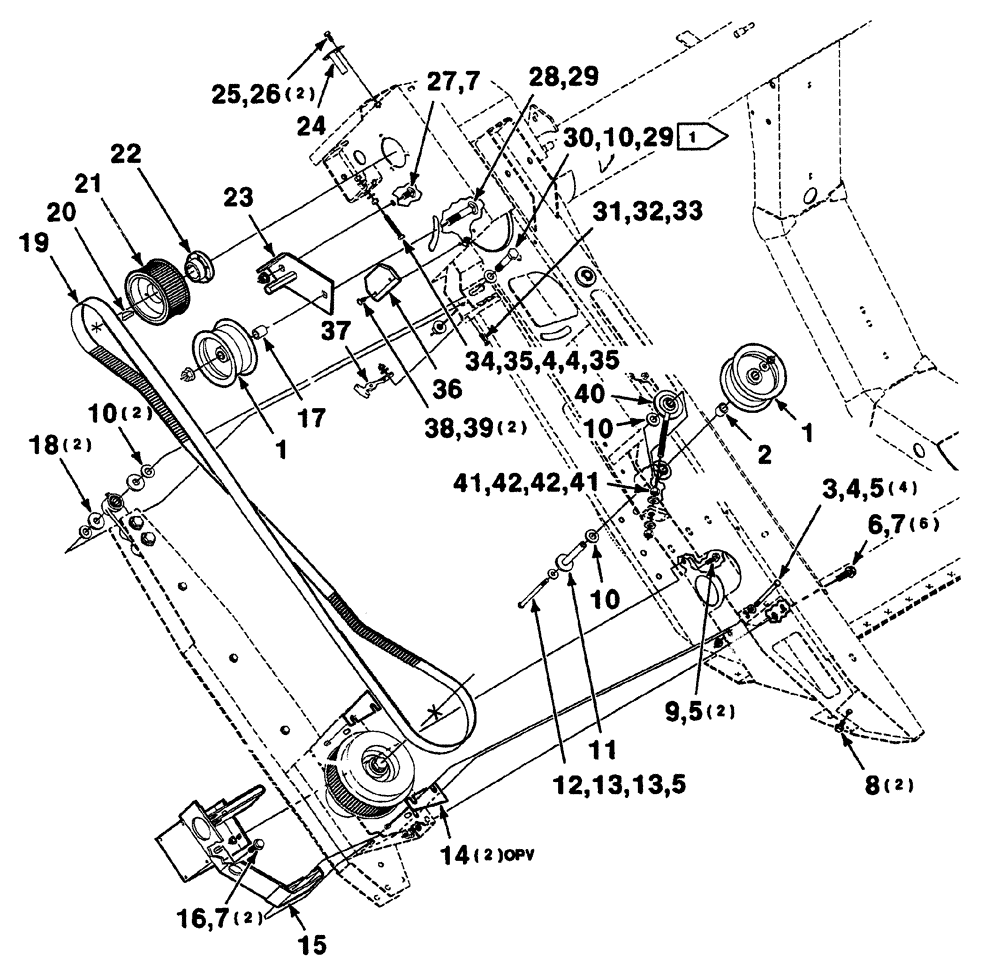

Запчасти Case IH 325 (2-14) - SICKLE DRIVE ASSEMBLY (RIGHT) (58) - ATTACHMENTS/HEADERS

1

700147639

FRONT IDLER

WA

2шт.

2

6117279

SPACER

BUSHING

1шт.

3

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

4шт.

4

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 hardened plain

6шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

7шт.

6

8701237

BOLT

1/2-13 x 1-1/2 HFS GR8

6шт.

7

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

9шт.

8

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

9

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 x 1-1/4HFS GR8

2шт.

10

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

5шт.

11

700147667

TUBE,115 mm Length

WA

1шт.

12

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3/8-16 x 6 C

1шт.

13

496-81010

WASHER

3/8 hardened wide plain

2шт.

14

700147711

SHIM

2шт.

15

700151151

SUPPORT

WA-right

1шт.

16

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 x 1 HFS GR8

2шт.

17

6599575

SPACER

1шт.

18

6855423

WASHER

SPACER

2шт.

19

700717275

BELT

drive, cog

1шт.

20

114745

WOODRUFF KEY,#21, 1/4" x 1 1/4", HT

1шт.

21

700717274

SPROCKET ASSY.

cog

1шт.

22

7747280

ASSEMBLY

tapered

1шт.

23

700148836

PLATE

WA-pivot, right

1шт.

24

700147682

ROD

WA

1шт.

25

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

26

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

27

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 RHSNB

1шт.

28

433-1056

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 x 3-1/2 RHSNB

1шт.

29

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

30

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

31

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 x 1 C

1шт.

32

495-21031

WASHER,1/4"

1шт.

33

1703354

NUT

1/4-20 HFTLN GR/G

1шт.

34

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

1шт.

35

425-106

NUT,3/8"-16, Cl 5

2шт.

36

700718636

GUIDE

belt

1шт.

37

700717323

LATCH

rubber

1шт.

38

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 x 3/4 RHSNB

2шт.

39

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

40

700147657

PIVOT

WA

1шт.

41

425-108

NUT,1/2" - 13, Gr 5

2шт.

42

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 hardened plain

2шт.
