Запчасти Case IH 325 (2-12) - SICKLE DRIVE ASSEMBLY (LEFT) (58) - ATTACHMENTS/HEADERS

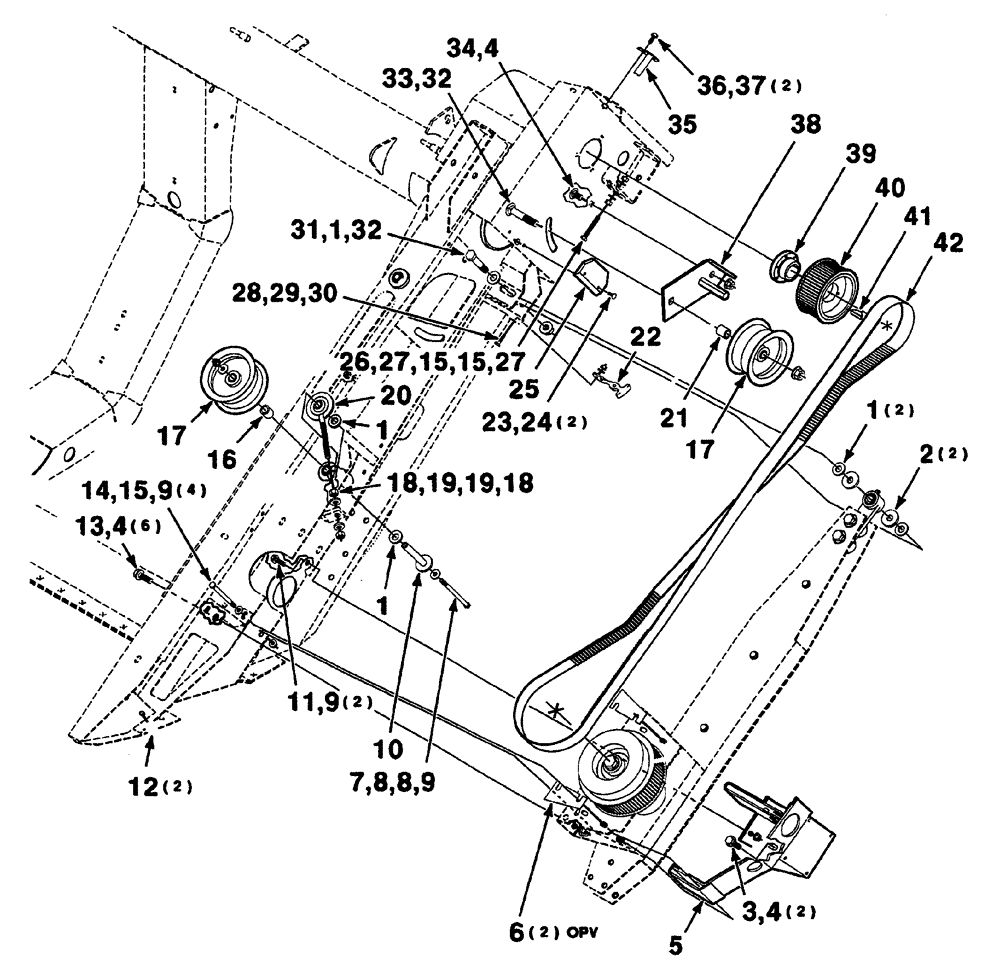

Схема запчастей Case IH 325 - (2-12) - SICKLE DRIVE ASSEMBLY (LEFT) (58) - ATTACHMENTS/HEADERS
25
35
4
15
14
12
18
16
36
10
34
41
6
8
32
9
20
27
7
29
17
28
31
23
1
8
38
5
9
39
11
37
24
27
32
19
9
15
4
18
1
26
42
1
22
30
15
40
1
3
21
4
17
19
13
2
33

Артикул

Название

Примечание

Количество

1

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

5шт.

2

6855423

WASHER

spacer

2шт.

3

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 x 1 HFS GR8

2шт.

4

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

9шт.

5

700151149

SUPPORT

WA-left

1шт.

6

700147711

SHIM

2шт.

7

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3/8-16 x 6 C

1шт.

8

496-81010

WASHER

3/8 hardened wide plain

2шт.

9

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

7шт.

10

700147667

TUBE,115 mm Length

WA

1шт.

11

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 x 1-1/4 HFS GR8

2шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

13

8701237

BOLT

1/2-13 x 1-1/2 HFS GR8

6шт.

14

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

4шт.

15

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 hardened plain

6шт.

16

6117279

SPACER

BUSHING

1шт.

17

700147639

FRONT IDLER

WA

2шт.

18

425-108

NUT,1/2" - 13, Gr 5

2шт.

19

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 hardened plain

2шт.

20

700147657

PIVOT

WA

1шт.

21

6599575

SPACER

1шт.

22

700717323

LATCH

rubber

1шт.

23

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 x 3/4 RHSNB

2шт.

24

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

25

700718636

GUIDE

belt

1шт.

26

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

1шт.

27

425-106

NUT,3/8"-16, Cl 5

2шт.

28

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 x 1 C

1шт.

29

495-21031

WASHER,1/4"

1шт.

30

1703354

NUT

1/4-20 HFTLN GR/G

1шт.

31

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

32

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

33

433-1056

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 x 3-1/2 RHSNB

1шт.

34

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 RHSNB

1шт.

35

700147682

ROD

WA

1шт.

36

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

37

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

38

700147654

PLATE

WA-pivot, left

1шт.

39

7747280

ASSEMBLY

tapered

1шт.

40

700717274

SPROCKET ASSY.

cog

1шт.

41

114745

WOODRUFF KEY,#21, 1/4" x 1 1/4", HT

1шт.

42

700717275

BELT

drive, cog

1шт.

Выбрано товаров: 42
