(2-06) - U - JOINT ASSEMBLY (INPUT SHAFT)

Запчасти Case IH 325 (2-06) - U - JOINT ASSEMBLY (INPUT SHAFT) (58) - ATTACHMENTS/HEADERS

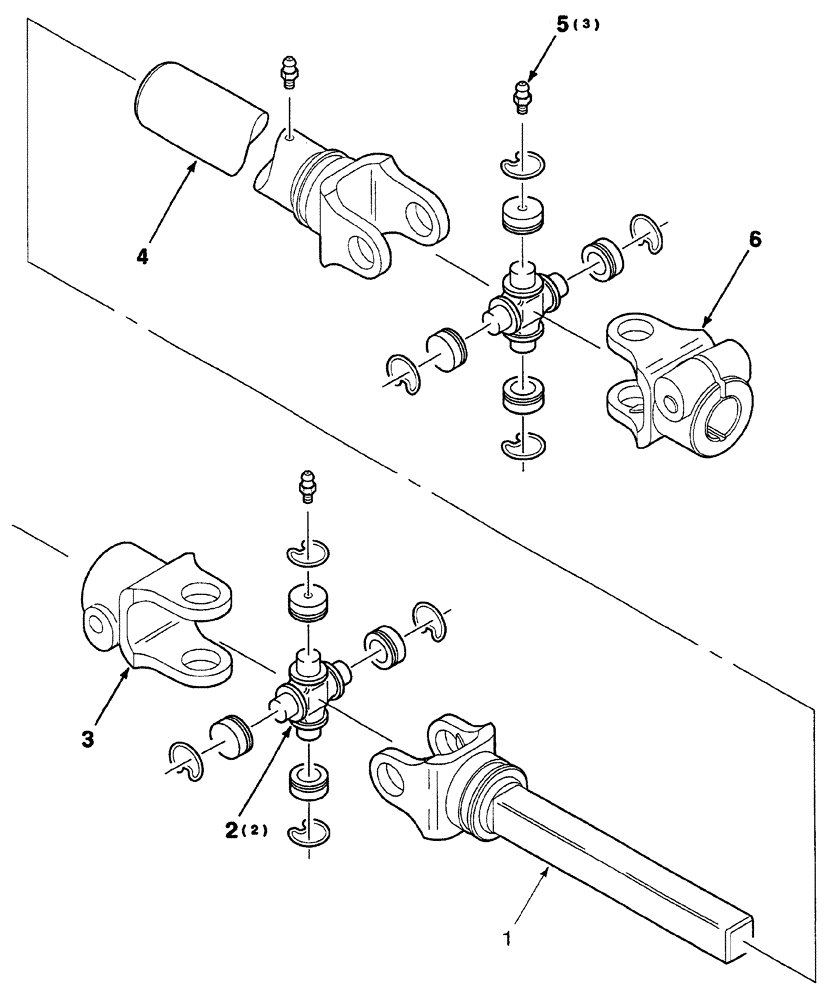

Схема запчастей Case IH 325 - (2-06) - U - JOINT ASSEMBLY (INPUT SHAFT) (58) - ATTACHMENTS/HEADERS
5
2
6
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700715723

UNIVERSAL JOINT

ASSEMBLY, complete

1шт.

1

700716419

LINKAGE YOKE

shaft

1шт.

2

700711843

FLEXIBLE JOINT

KIT, cross and bearing, Includes: Ref. 5

2шт.

3

757716

CLAMP

YOKE

1шт.

4

700716420

LINKAGE YOKE

slip

1шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

3шт.

6

700700842

LINKAGE YOKE

1шт.
