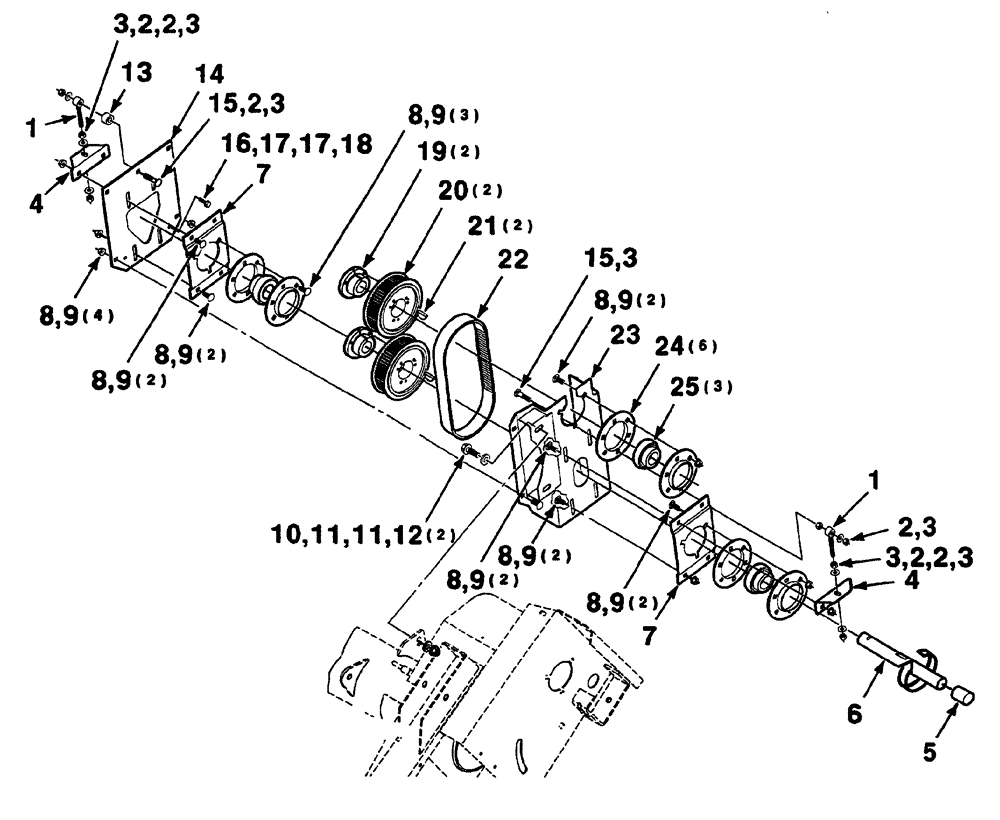

Запчасти Case IH 325 (2-04) - INPUT DRIVE ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

700151163

ROD

WA

2шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 hardened plain

6шт.

3

425-106

NUT,3/8"-16, Cl 5

7шт.

4

700151158

ANGLE

2шт.

5

700718364

COVER

1шт.

6

700151168

SHAFT

drive

1шт.

7

700151160

PLATE

2шт.

8

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

19шт.

9

329-286

FLANGE NUT,Flg, 3/8"-16, G8

19шт.

10

8701237

BOLT

1/2-13 x 1-1/2 HFSGR8

2шт.

11

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 hardened plain

4шт.

12

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

13

700108796

SPACER

1шт.

14

700151154

PLATE

1шт.

15

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8-16 x 1-3/4 RHSNB

2шт.

16

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 x 1 HWHMS

1шт.

17

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

19

700719058

BUSHING

taper lock

2шт.

20

700718804

SPROCKET ASSY.

cog

2шт.

21

114745

WOODRUFF KEY,#21, 1/4" x 1 1/4", HT

2шт.

22

700718739

BELT

drive, cog

1шт.

23

700151155

SUPPORT

WA

1шт.

24

825620C1

RETAINER

6шт.

25

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

spherical

3шт.
