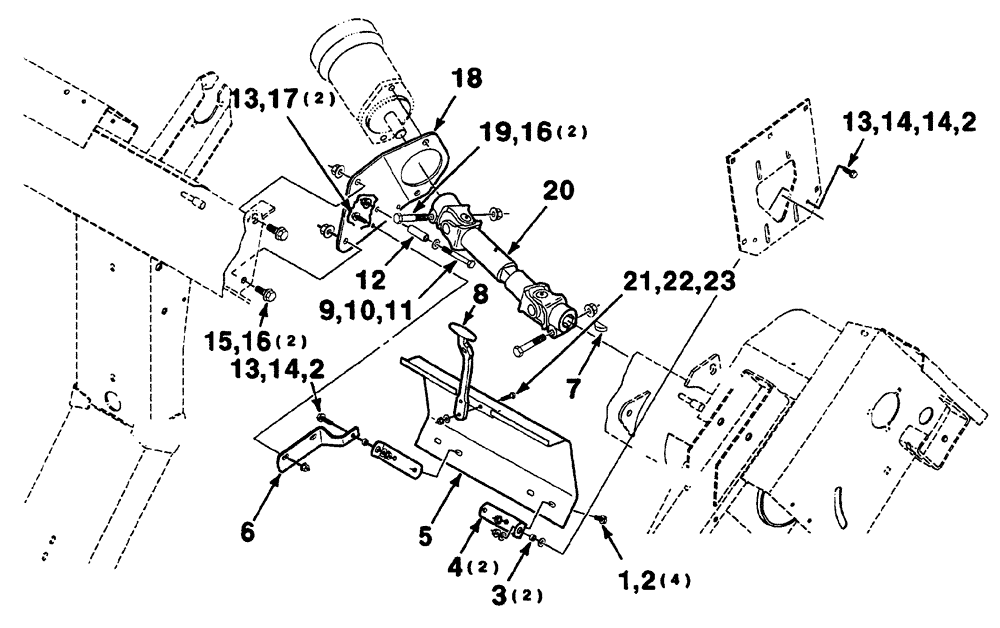

Запчасти Case IH 325 (2-02) - INPUT DRIVE ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

3

6124259

BUSHING

2шт.

4

700110705

SUPPORT

shield

2шт.

5

700151039

SHIELD

rear, left

1шт.

6

700151041

STRAP

shield

1шт.

7

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

1шт.

8

700717323

LATCH

rubber

1шт.

9

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

C

1шт.

10

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 hardened plain

1шт.

11

329-286

FLANGE NUT,Flg, 3/8"-16, G8

1шт.

12

700111525

TUBE,15.88 mm OD, 48.5 mm Length

1шт.

13

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 x 1 HWHMS

4шт.

14

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

3шт.

15

8701237

BOLT

1/2-13 x 1-1/2HFS GR8

2шт.

16

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13HFTLN GR/G

4шт.

17

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18HFTLN GR/G

2шт.

18

700151173

SUPPORT

WA-motor

1шт.

19

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 x 2-3/4 C

2шт.

20

700715723

UNIVERSAL JOINT

ASSEMBLY, see Figure 2-06

1шт.

21

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 x 1 C

1шт.

22

495-21031

WASHER,1/4"

1шт.

23

1703354

NUT

1/4-20 HFTLN GR/G

1шт.
