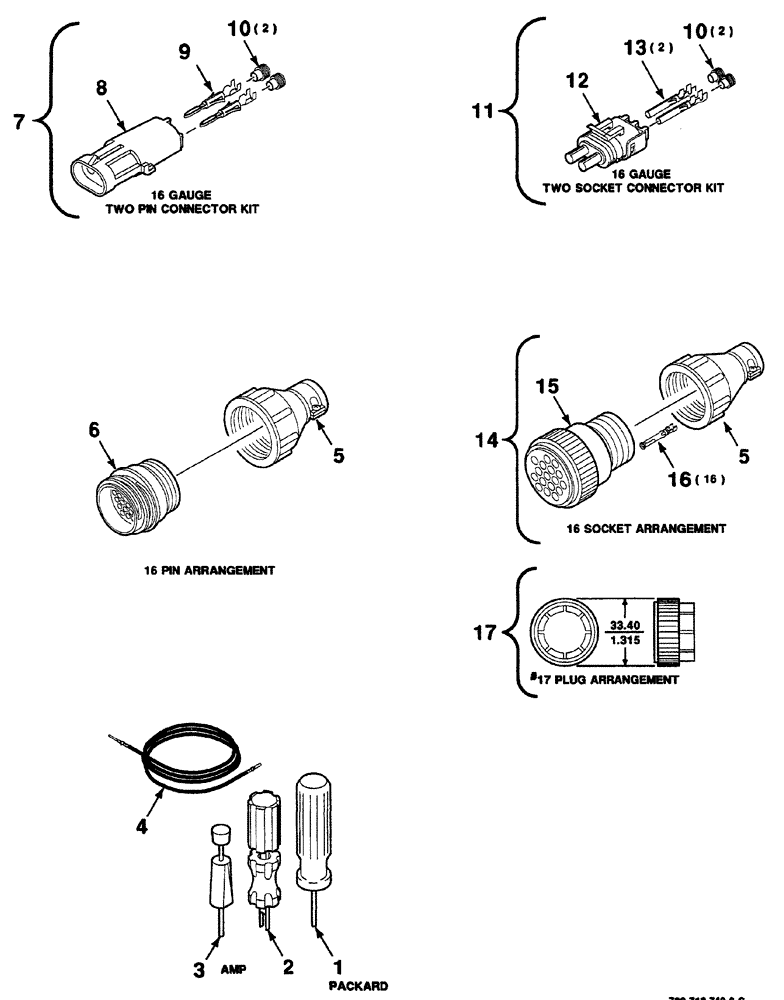

Запчасти Case IH 325 (4-04) - ELECTRICAL HARNESS SERVICE PARTS (55) - ELECTRICAL SYSTEMS

1

700707012

TERMINAL CONNECTOR

TOOL, repair, packard

1шт.

2

700707014

TERMINAL CONNECTOR

TOOL, repair

1шт.

3

CAS1631

TOOL KIT

connector repair, AMP

1шт.

4

700708333

WIRE

test

1шт.

5

225153C1

CONTACT HOUSING

CLAMP, cable, shell size 17

2шт.

6

700708754

CONTAINER

CONNECTOR, male, 16 pin arrangement

1шт.

7

700718588

KIT

harness repair, 2 pin, male, 16 gauge (Includes items 8, 9 and 10)

1шт.

8

700706399

ELEC CONNECTOR,14 - 20 SAE

shroud, 2 pin, male

1шт.

9

700718530

TERMINAL CONNECTOR

PIN, male (16 gauge)

1шт.

10

225125C1

SEAL

SEAL (16 gauge)

4шт.

11

700718590

KIT

harness repair, 2 socket, female, 16 gauge (Includes items 10, 12 and 13)

1шт.

12

245482C1

ELEC CONNECTOR,2 Pin

tower, 2 socket, female

1шт.

13

700718576

TERMINAL CONNECTOR

SOCKET, female (16 gauge)

2шт.

14

700718611

KIT

harness repair, female, (16 socket) (Includes items 5, 15 and 16)

1шт.

15

225171C1

ELEC CONNECTOR,Female, 16 Pin

plug, female, (16 socket arrangement)

1шт.

16

700708758

TERMINAL

type 3, female, (16-18 gauge)

16шт.

17

1301191C1

CONNECTION

RING, coupling

1шт.
