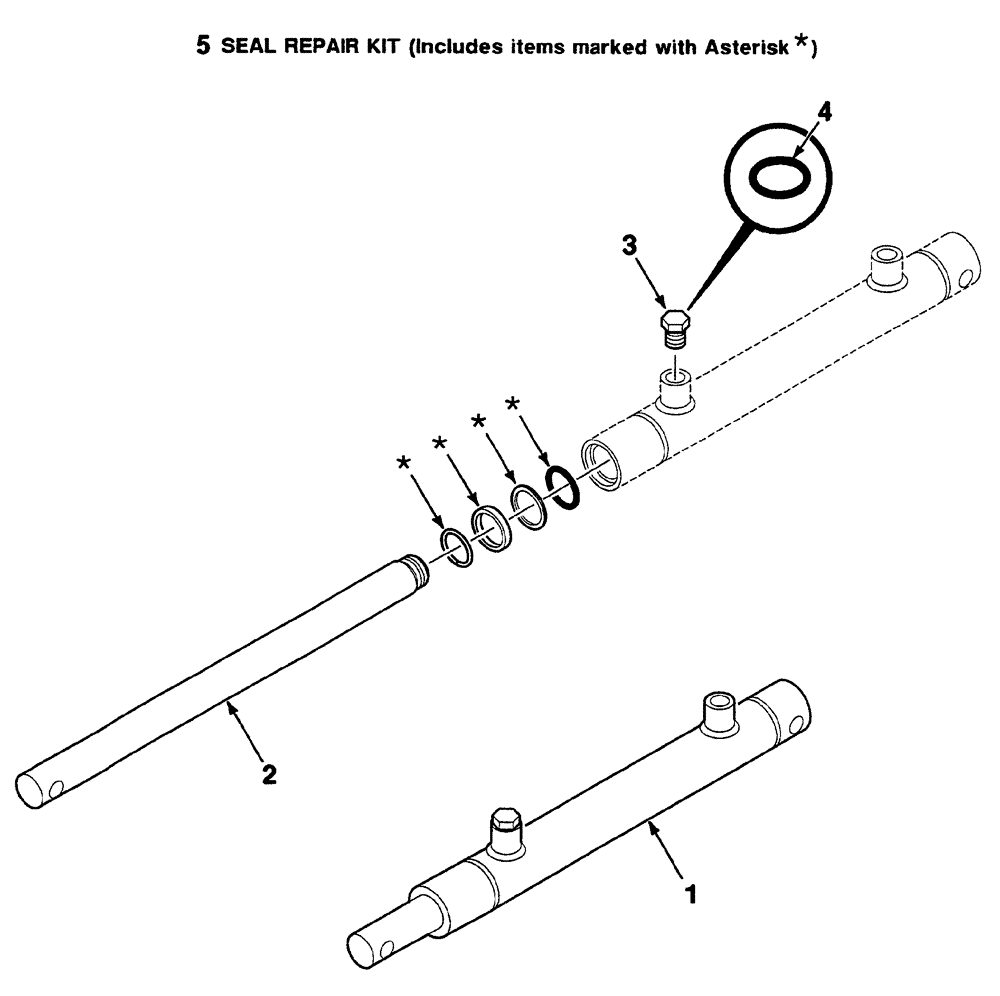

Запчасти Case IH 325 (8-34) - HYDRAULIC CYLINDER ASSEMBLY - REEL (SLAVE) (35) - HYDRAULIC SYSTEMS

1

700717311

CYLINDER

ASSEMBLY, hydraulic, complete, slave (1" bore x 12" stroke)

1шт.

2

700718329

ROD

piston

1шт.

3

7746456

PLUG

Includes: Ref. 4

1шт.

4

738468

O-RING

1шт.

5

700714207

SEAL PACKAGE

KIT, repair, o-ring

1шт.
