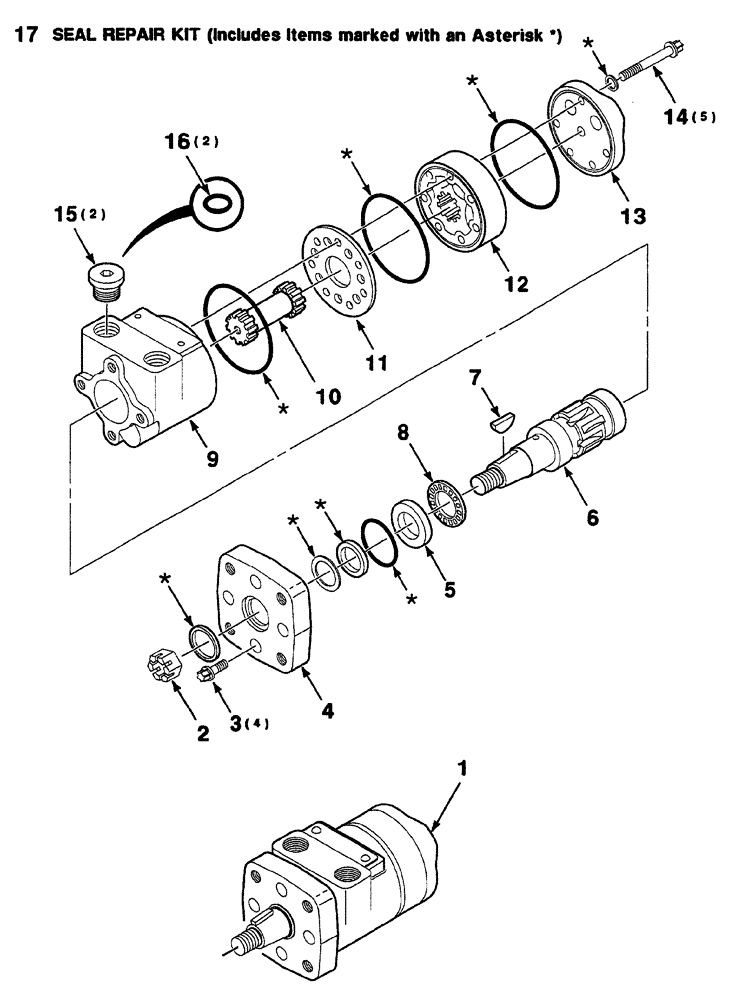

Запчасти Case IH 325 (8-32) - HYDRAULIC MOTOR ASSEMBLY (AUGER DRIVE) (35) - HYDRAULIC SYSTEMS

1

700718630

MOTOR, HYDRAULIC

ASSEMBLY complete

1шт.

2

425-1312

SLOTTED NUT,3/4"-16, G5

3/4-16 SHN

1шт.

3

700713327

SCREW

5/16-24 x 7/8 torx drive cap

4шт.

4

700710623

FLANGE

mounting

1шт.

5

63779C1

BEARING CUP,27.94mm ID x 42.16mm OD x 10.16mm L

RACE, bearing

1шт.

6

700719733

SHAFT

output, tapered, keyed

1шт.

7

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

8

63780C91

THRUST BEARING

thrust, needle

1шт.

9

700710628

HOUSING

1шт.

10

700711627

DRIVE

1шт.

11

8732539

SPACER

PLATE

1шт.

12

700711628

GEROTOR

SET

1шт.

13

700719734

CAP

end

1шт.

14

136587A1

SCREW,Torx Hd, 5/16" - 24 x 1 5/8"

5/16-24 x 1.62 torx drive cap

5шт.

15

700719735

PLUG

7/8-14

2шт.

16

313834A1

O-RING

2шт.

17

1542724C1

SEAL KIT

KIT, repair, o-ring

1шт.
