(8-30) - HYDRAULIC AUGER DRIVE ASSEMBLY "B"

Запчасти Case IH 325 (8-30) - HYDRAULIC AUGER DRIVE ASSEMBLY "B" (35) - HYDRAULIC SYSTEMS

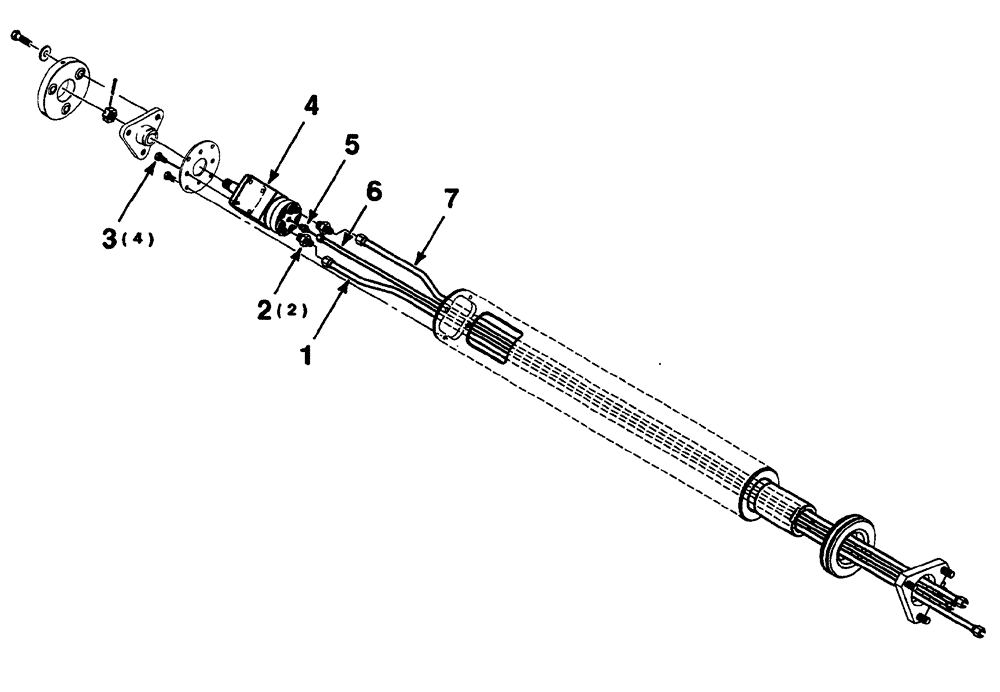

Схема запчастей Case IH 325 - (8-30) - HYDRAULIC AUGER DRIVE ASSEMBLY "B" (35) - HYDRAULIC SYSTEMS
1
2
5
6
7
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700718647

PIPE

LINE, hydraulic

1шт.

2

7046477

ADAPTER

FITTING

2шт.

3

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

4

700718630

MOTOR, HYDRAULIC

drive, see Figure 8-32

1шт.

5

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

FITTING, Adapter

1шт.

6

700718648

TUBE ASSY.,6.35 mm OD, 1008 mm Length

LINE, hydraulic, case drain

1шт.

7

700719192

PIPE

LINE, hydraulic

1шт.
