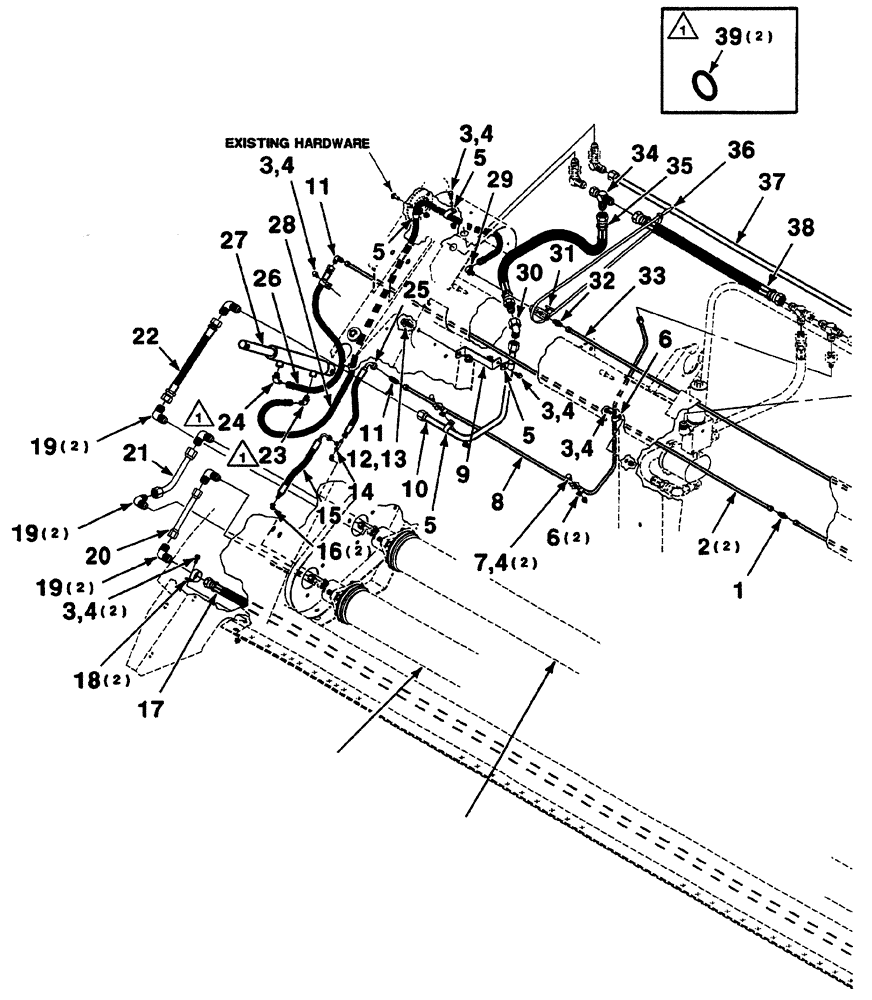

Запчасти Case IH 325 (8-26) - HYDRAULIC ASSEMBLY - RIGHT (18 FOOT) (35) - HYDRAULIC SYSTEMS

1

846477

UNION

1шт.

2

700719262

TUBE ASSY.,9.52 mm OD, 2862 mm Length

LINE, hydraulic

2шт.

3

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

5

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Line

4шт.

6

700708939

CLAMP

line

3шт.

7

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

2шт.

8

700719267

PIPE

LINE, hydraulic, right

1шт.

9

700151979

STRAP

support

1шт.

10

700718649

TUBE ASSY.

LINE, hydraulic

1шт.

11

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

ELBOW 90°

2шт.

12

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1шт.

13

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

14

700701350

FITTING

tee

1шт.

15

700719034

HOSE

hydraulic

1шт.

16

700719027

ELBOW

90°

2шт.

17

700719263

HYDRAULIC HOSE,0.75" ID x 220.47", SAE 100R1, SAE J517

hydraulic

1шт.

18

CAS755777

CLAMP

line

2шт.

19

53425

SHAFT

90°

6шт.

20

700719028

TUBE ASSY.,19.05 mm OD, 153 mm Length

LINE, hydraulic

1шт.

21

700719036

TUBE ASSY.,19.05 mm OD, 119, 62 mm Length

LINE, hydraulic

1шт.

22

700719037

HYDRAULIC HOSE,0.75" ID x 11.81", SAE 100R1, SAE J517, SAE J516, SAE J343

hydraulic

1шт.

23

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

24

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

25

700719033

HOSE

hydraulic

1шт.

26

1270453C1

HYDRAULIC HOSE

hydraulic

1шт.

27

700717310

CYLINDER

hydraulic master

1шт.

28

700717390

HOSE

hydraulic

1шт.

29

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

90°

1шт.

30

700701790

ELBOW

45°

1шт.

31

700711345

VALVE

1шт.

32

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING, adapter

1шт.

33

700713872

TUBE,9.52 mm OD, 3556 mm Length

LINE, hydraulic

1шт.

34

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

35

700719040

HYDRAULIC HOSE,0.75" ID x 14.17", SAE 100R1, SAE J517, SAE J516, SAE J343

hydraulic

1шт.

36

529070

CABLE TIE,368.3mm L

TIE, cable

1шт.

37

700719265

PIPE

LINE, hydraulic

1шт.

38

700719031

HYDRAULIC HOSE,0.75" ID x 44.88", SAE 100R1, SAE J517, SAE J516, SAE J343

hydraulic

1шт.

39

738468

O-RING

2шт.
