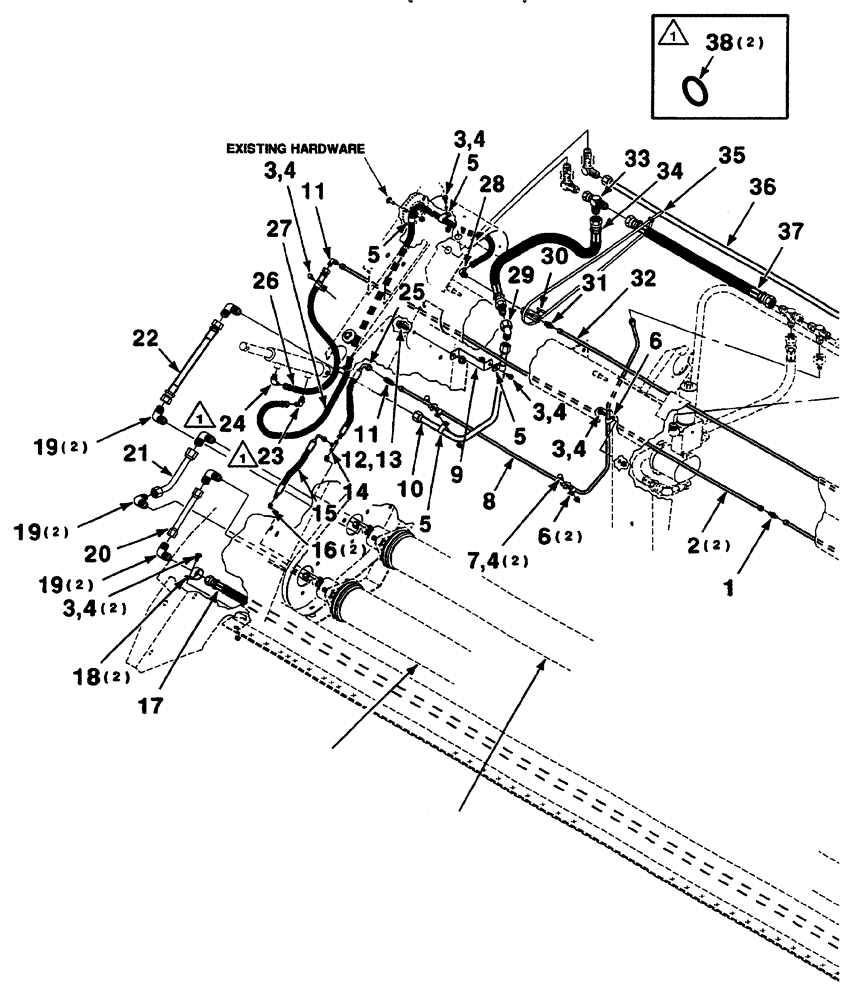

Запчасти Case IH 325 (8-22) - HYDRAULIC ASSEMBLY - RIGHT (15 FOOT) (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
846477
UNION
1шт.
2
45920
TUBE ASSY.
LINE, hydraulic
2шт.
3
121-115
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
6шт.
4
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
8шт.
5
515-23190
CLAMP,3/4", Insul, 3/8" Bolt
Line
4шт.
6
700708939
CLAMP
line
3шт.
7
111-237
CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5
2шт.
8
700719025
PIPE
LINE, hydraulic, right
1шт.
9
700151979
STRAP
support
1шт.
10
700718649
TUBE ASSY.
LINE, hydraulic
1шт.
11
218-473
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC
ELBOW 90°
2шт.
12
700710984
SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC
1шт.
13
231-5348
FLANGE NUT,Flg, 1/2"-13
1/2-13 HFTLN GR/G
1шт.
14
700701350
FITTING
tee
1шт.
15
700719034
HOSE
hydraulic
1шт.
16
700719027
ELBOW
90°
2шт.
17
700719029
HOSE
hydraulic
1шт.
18
CUR755777
PULLEY
line
2шт.
19
218-476
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC
90°
6шт.
20
700719028
TUBE ASSY.,19.05 mm OD, 153 mm Length
LINE, hydraulic
1шт.
21
700719036
TUBE ASSY.,19.05 mm OD, 119, 62 mm Length
LINE, hydraulic
1шт.
22
700719037
HYDRAULIC HOSE,0.75" ID x 11.81", SAE 100R1, SAE J517, SAE J516, SAE J343
hydraulic
1шт.
23
218-5135
ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
1шт.
24
218-5105
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
1шт.
25
700719033
HOSE
hydraulic
1шт.
26
1270453C1
HYDRAULIC HOSE
hydraulic
1шт.
27
700717390
HOSE
hydraulic
1шт.
28
218-483
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF
90°
1шт.
29
700701790
ELBOW
45°
1шт.
30
700711345
VALVE
1шт.
32
700718849
TUBE ASSY.
LINE, hydraulic
1шт.
33
218-5221
TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run
1шт.
34
700719040
HYDRAULIC HOSE,0.75" ID x 14.17", SAE 100R1, SAE J517, SAE J516, SAE J343
hydraulic
1шт.
36
700719023
PIPE
LINE, hydraulic
1шт.
37
700701765
FLEXIBLE HOSE
hydraulic
1шт.
38
738468
O-RING
2шт.
Выбрано товаров: 38
