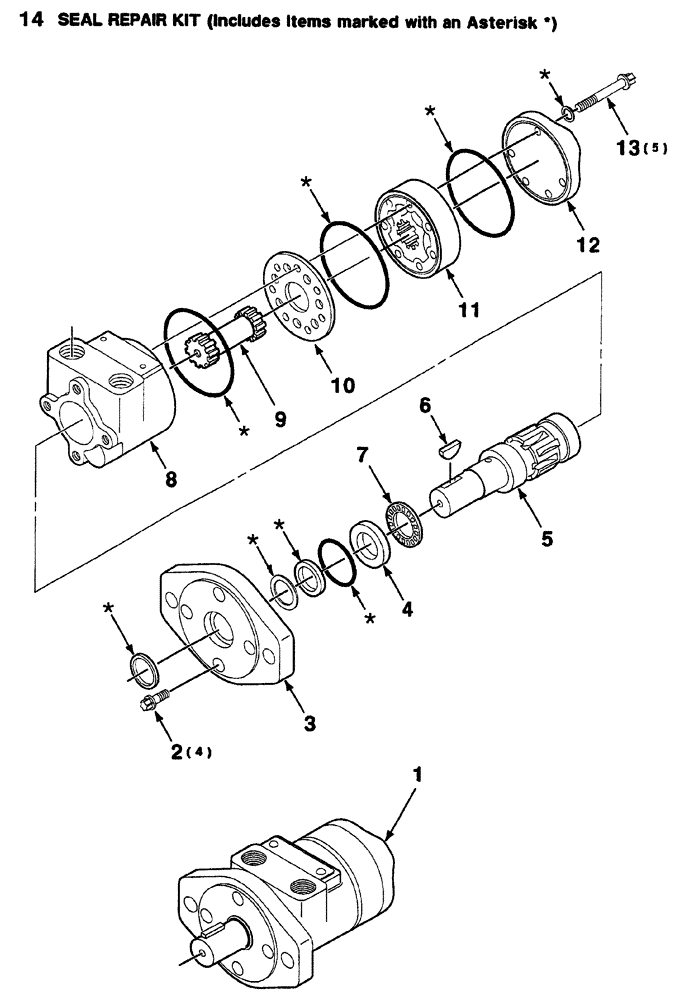

Запчасти Case IH 325 (8-18) - HYDRAULIC MOTOR ASSEMBLY (REEL DRIVE) (35) - HYDRAULIC SYSTEMS

1

700719538

MOTOR, HYDRAULIC

ASSEMBLY complete

1шт.

2

700713327

SCREW

5/16-24 x 7/8 torx drive cap 6-point

4шт.

3

700711613

FLANGE

mounting

1шт.

4

63779C1

BEARING CUP,27.94mm ID x 42.16mm OD x 10.16mm L

RACE, bearing

1шт.

5

8732513

SHAFT

output, keyed

1шт.

6

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

7

63780C91

THRUST BEARING

thrust, needle

1шт.

8

700710628

HOUSING

1шт.

9

700717609

DRIVE

1шт.

10

8732539

SPACER

PLATE

1шт.

11

700717610

GEROTOR

SET

1шт.

12

700710631

CAP

end

1шт.

13

700717613

CAPSCREW

5/16-24 x 2.25 torx drive 6-point

5шт.

14

1542724C1

SEAL KIT

KIT, repair, o-ring

1шт.
