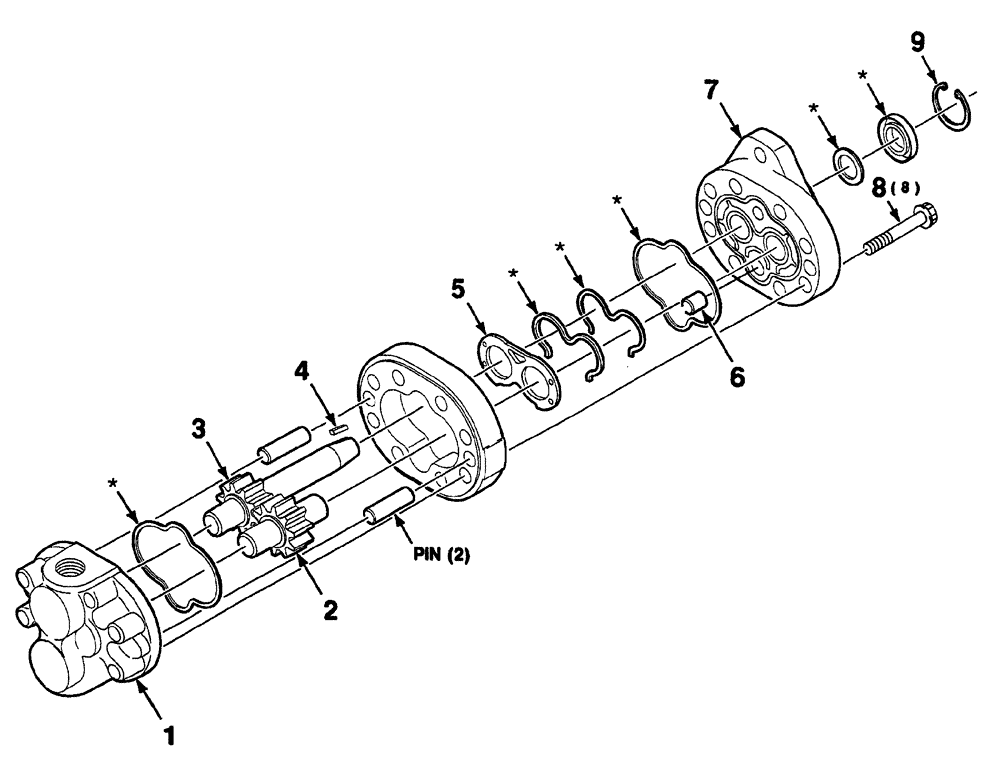

Запчасти Case IH 325 (8-10) - HYDRAULIC PUMP ASSEMBLY - LEFT (35) - HYDRAULIC SYSTEMS

700717303

PUMP, HYDRAULIC

ASSEMBLY complete

1шт.

1

700717600

BACK PLATE

1шт.

2

700717608

GEAR, IDLER

GEAR,IDLE

1шт.

3

700717607

GEAR

drive

1шт.

4

H233346

KEY

1шт.

5

700717604

PLATE

wear

1шт.

6

291743A1

PLUG

1шт.

7

291734A1

PLATE

front

1шт.

8

730184

BOLT,M16 x 280mm

SCREW, 5/16-18 x 2-3/4

8шт.

9

100-21137

SNAP RING,1.375", Int, #137

1шт.

10

700717606

SEAL KIT

seal repair, Includes all items in the art marked with an asterisk.

1шт.
