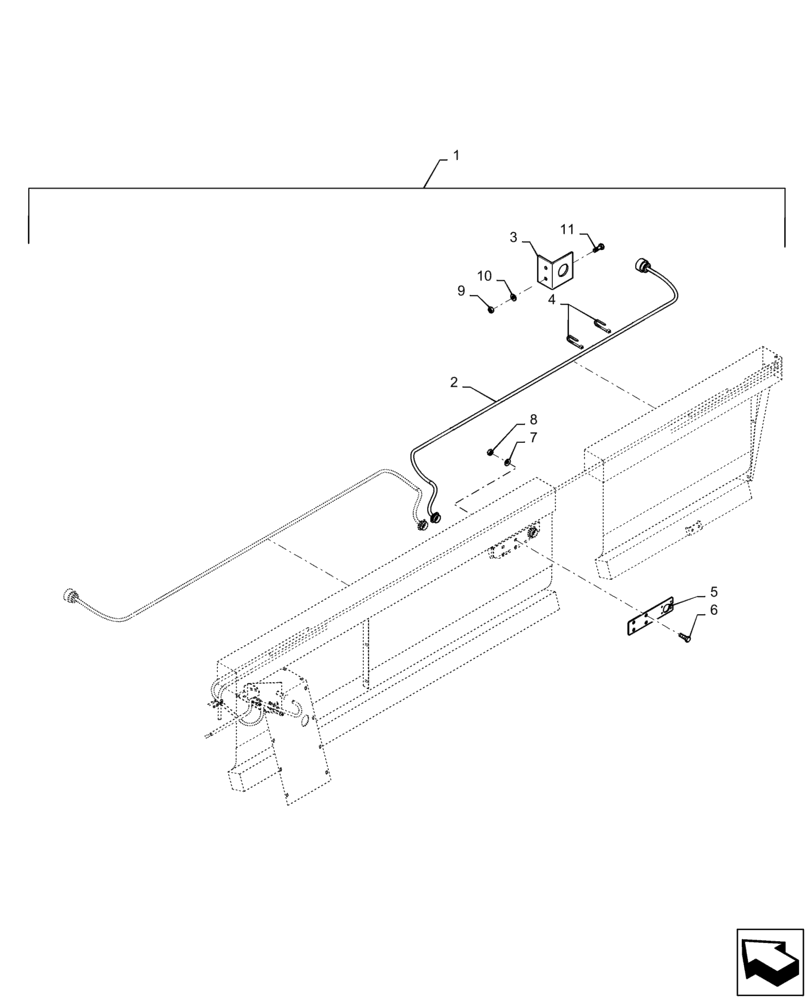

Запчасти Case IH 2060-20 (88.100.58[03]) - VERTICAL KNIFE, HEADER WIRING RH FI (88) - ACCESSORIES

1

47506070

DIA KIT, HARVESTER

Incl 2 - 11

1шт.

2

47472817

WIRE HARNESS

Vertical Knife, RH

1шт.

3

47482555

SUPPORT

1шт.

4

86566989

CABLE TIE,208mm L

Nylon

10шт.

5

47482554

SUPPORT

1шт.

6

86511816

SCREW,Pan, M3 x 0.5 x 16mm, Cl 4.8

8шт.

7

87389403

BELLEVILLE WASHER,M3 Bolt Size x 8mm OD x 0.6mm Thk

8шт.

8

86508812

NUT,M3, Cl 8

8шт.

9

9706755

NUT,M6, Cl 8

2шт.

10

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

11

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.
