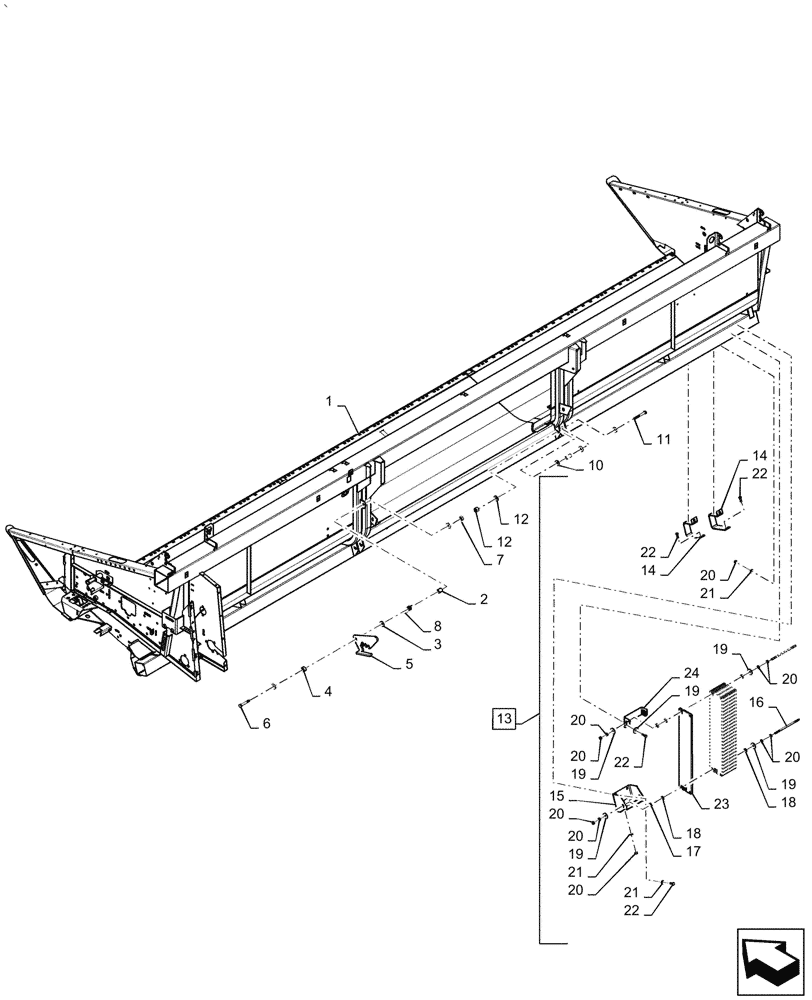

Запчасти Case IH 2060-20 (58.130.AJ) - FRAME, HEADER, 20FT (58) - ATTACHMENTS/HEADERS

1

47617142

Weld Assy, Header, 20ft

FRAME

1шт.

2

86553411

SPACER,13.49mm ID x 18.97mm OD x 23.88mm L

1шт.

3

86625254

WASHER,13.5mm ID x 28mm OD x 2.5mm Thk

3шт.

4

86622548

SPACER,13.55mm ID x 19.01mm OD x 10.79mm L

Tube

1шт.

5

87614284

CLIP

Hook

1шт.

6

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

7

9706685

NUT,M12 x 1.75, Cl 8

1шт.

8

87026147

SPRING

1шт.

9

394630

4шт.

10

84011662

WASHER,14mm ID x 32mm OD x 3.5mm Thk

4шт.

11

86508581

BOLT,Hex, M12 x 90mm, Cl 8.8

2шт.

12

412126

NUT,M12 x 1.75

Prevailing Torque

2шт.

13

47938757

Assy, 14 - 24

COUNTERWEIGHT

1шт.

14

47942332

Weld Assy

PLATE

2шт.

15

47938607

Mounting Weld Assy

PLATE

1шт.

16

47938614

STUD

2шт.

17

86625254

WASHER,13.5mm ID x 28mm OD x 2.5mm Thk

3шт.

18

87376144

WASHER,13mm ID x 28mm OD x 5mm Thk

3шт.

19

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

5шт.

20

9706685

NUT,M12 x 1.75, Cl 8

11шт.

21

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

Lock

5шт.

22

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

5шт.

23

47938759

COUNTERWEIGHT

13шт.

24

47938611

Mounting Weld Assy

PLATE

1шт.
