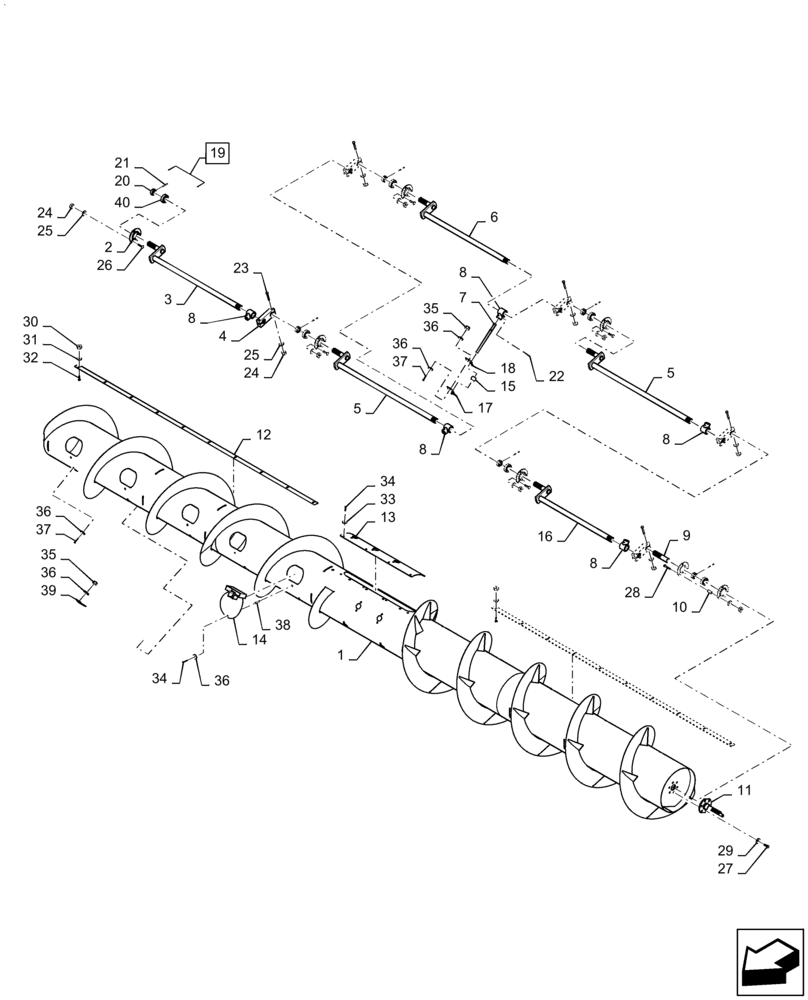

Запчасти Case IH 2060-20 (58.120.AD) - FEED AUGER, 20FT (58) - ATTACHMENTS/HEADERS

1

47519427

Weld Assy, 20ft

AUGER

1шт.

2

86974088

FLANGE,Bearing

12шт.

3

47576092

Crankshaft, Weld Assy

SERVICE KIT

1шт.

4

740351

TRACK ROD ASSY

Link, Lift

5шт.

5

753774

SHAFT

17 - 20 Ft

2шт.

6

740380

SHAFT

Crank

1шт.

7

84161891

FINGER

11шт.

8

87691794

COUPLING

Joint

25шт.

9

740373

SHAFT

1шт.

10

342468

SPACER,10.5mm ID x 16mm OD x 16.5mm L

3шт.

11

84032891

SHAFT

1шт.

12

47455997

ADJUSTING PLATE

20 Ft

2шт.

13

47515198

COVER

1шт.

14

84440594

PLATE

Cover, Access

10шт.

15

80740600

GUIDE

11шт.

16

47571201

Weld Assy

SHAFT

1шт.

17

740602

CLAMP

11шт.

18

740603

CLAMP

11шт.

19

80325106

BEARING ASSY

Grain Elevator, Incl 20, 21, 40

6шт.

20

NSS

NOT SOLD SEPARAT

Ring, Incl in 19

1шт.

21

86516064

SET SCREW,M6 x 6mm, Cl 12.9

1шт.

22

740591

SPRING,M10 x 67

11шт.

23

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

10шт.

24

100016

NUT,M10 x 1.5, Cl 8

28шт.

25

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

28шт.

26

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

15шт.

27

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

3шт.

28

412217

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8, Full Thd

3шт.

29

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

30

43362

NUT,M8 x 1.25, Cl 10

18шт.

31

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

18шт.

32

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

18шт.

33

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

34

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

18шт.

35

353308

NUT,M6 x 1.0, Cl 8

42шт.

36

140015

WASHER,6.4mm ID x 14mm OD x 1.6mm Thk

94шт.

37

120100

BOLT,M6 x 20mm, Cl 8.8

42шт.

38

740622

THREADED INSERT

10шт.

39

747408

COVER

10шт.

40

445927

BALL BEARING,30 mm ID x 60 mm OD x 18 mm

1шт.
