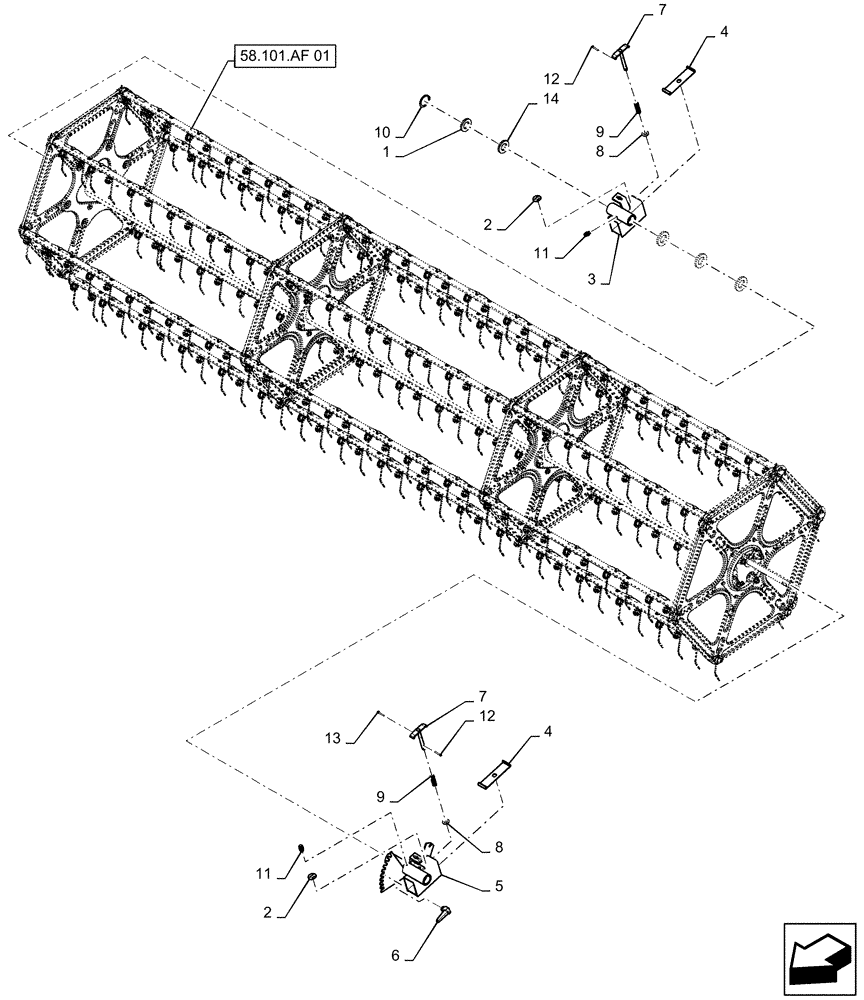

Запчасти Case IH 2060-20 (58.105.AY[01]) - REEL SUPPORT, 20FT (58) - ATTACHMENTS/HEADERS

1

84075368

WASHER,35.7mm ID x 51mm OD x 3.5mm Thk

1шт.

2

84334829

DECAL

2шт.

3

47769050

Brace Weld Assy

SUPPORT

1шт.

4

9831376

GUIDE

Block

2шт.

5

47576879

Brace Weld Assy

SUPPORT

1шт.

6

9832581

KNOB

Handle, Multi

1шт.

7

47547722

Weld Assy

PIN

2шт.

8

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

2шт.

9

918027

SPRING

Compression

2шт.

10

370004

SNAP RING,M35 x 1.5mm Thk, External

1шт.

11

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

Fitting

2шт.

12

130003

COTTER PIN,3mm OD x 30mm OAL

2шт.

13

130043

LOCK PIN,M4 x 26, Slotted

2шт.

14

330873

WASHER

1шт.
