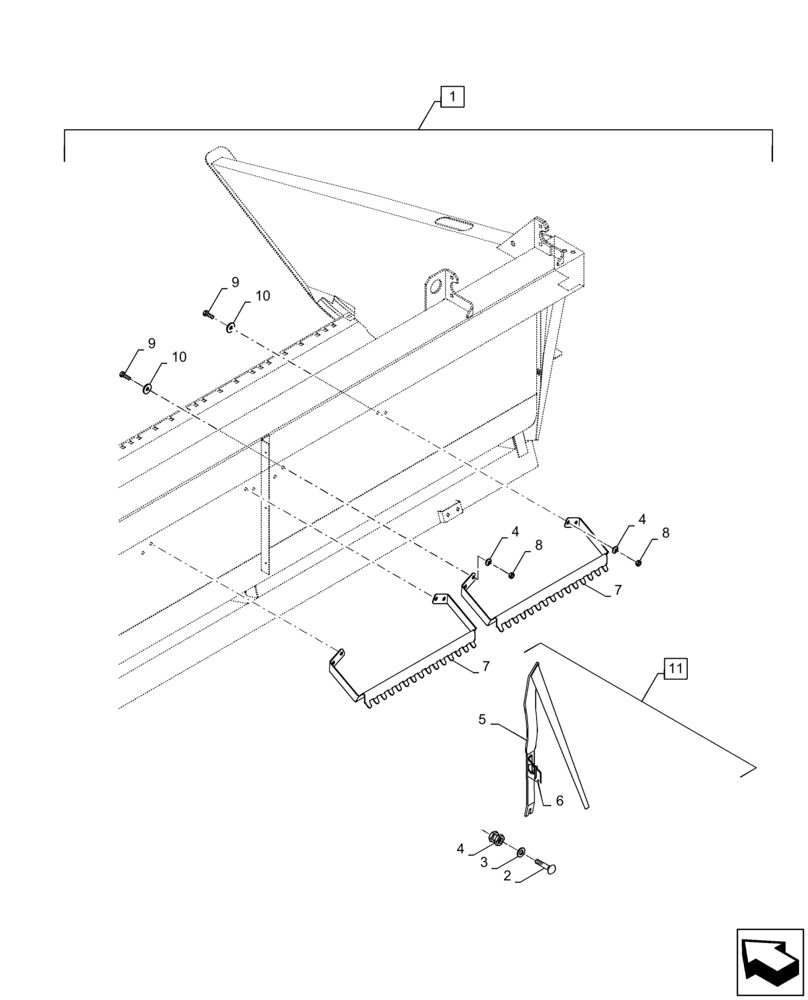

Запчасти Case IH 2060-17 (88.100.58[05]) - DIA KIT, CROPLIFTER SET (88) - ACCESSORIES

1

84134167

DIA KIT, HARVESTER

Incl 2 - 11

1шт.

2

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

1шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

4

9514326

NUT

1шт.

5

84134059

CROP LIFTER

1шт.

6

9819639

SPRING

1шт.

7

84441549

SUPPORT

1шт.

8

100016

NUT,M10 x 1.5, Cl 8

4шт.

9

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

10

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

4шт.

11

84134152

SERVICE KIT

17 Foot Header, Incl 2 - 6

16шт.
