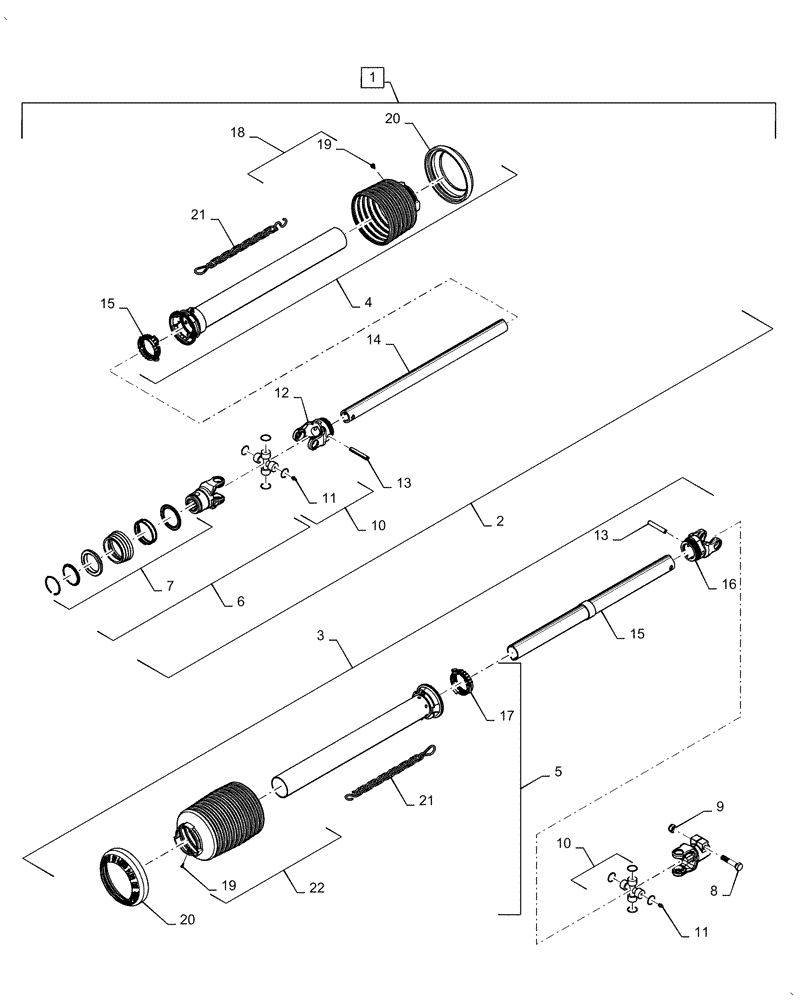

Запчасти Case IH 2060-17 (58.100.AG) - PTO SHAFT, 17FT (58) - ATTACHMENTS/HEADERS

1

47674862

PTO, 17ft, Incl 2 - 22

SHAFT

1шт.

2

47688060

Incl 4, 6, 7, 10 - 15, 18 - 21

CLUTCH

1шт.

3

47688061

PTO, Incl 5, 8 - 11, 13, 15 - 17, 19 - 22

CLUTCH

1шт.

4

47688062

Protection, Incl 15, 18 - 21

COVER

1шт.

5

47688063

Protection, Incl 17, 19 - 22

COVER

1шт.

6

47644834

Yoke, Incl 7

SERVICE KIT

1шт.

7

87316647

COLLAR

Lock Assy

1шт.

8

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

9

412126

NUT,M12 x 1.75

Prev Torque

1шт.

10

47688055

Yoke, Incl 11

SERVICE KIT

2шт.

11

47688054

Grease

LUBE NIPPLE

2шт.

12

PA556924

YOKE

1шт.

13

412690

PIN,10mm OD x 65mm L, Slotted

Slotted Spring

2шт.

14

NSS

NOT SOLD SEPARAT

TUBE Type Ov, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE Type 1, Incl in 1

1шт.

16

1326493C1

YOKE

1шт.

17

728164

RING

Sleeve Bearing

2шт.

18

47687588

Protection Assy, Incl 19

COVER

1шт.

19

86585706

SCREW,Phillips Drive, Pan HD, M4 x 10mm, Cl 4.8

2шт.

20

456679

COLLAR

Ring Kit

2шт.

21

379650

CHAIN

Anchor

3шт.

22

47687584

Protection Assy, Incl 19

COVER

1шт.
