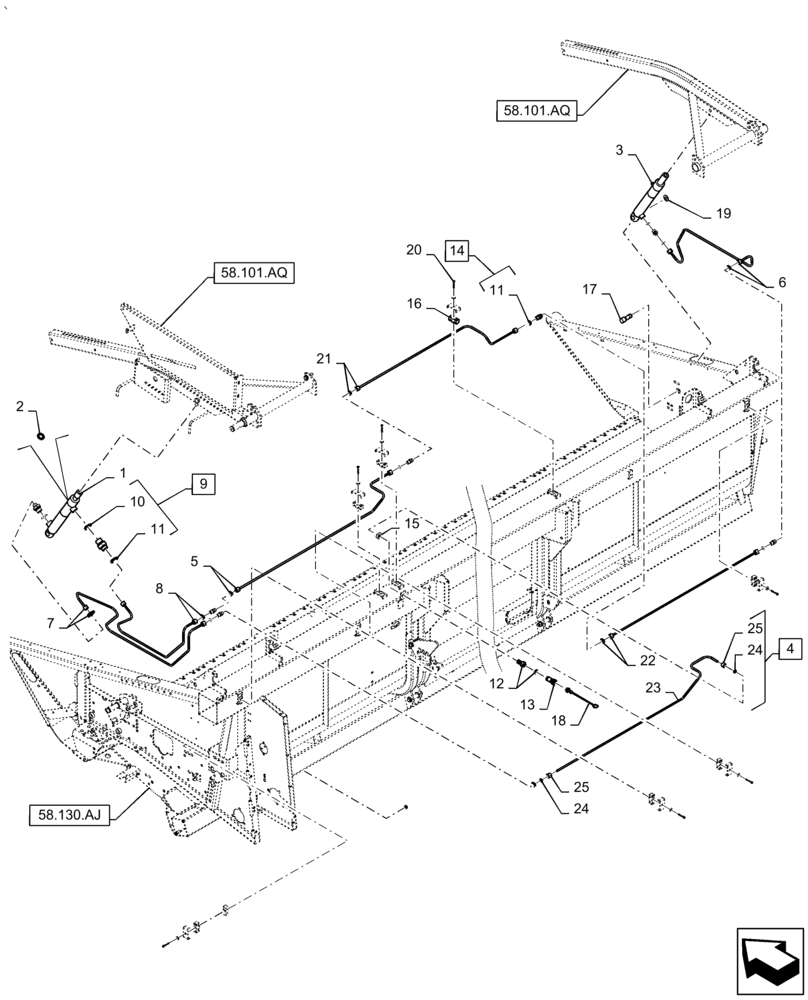

Запчасти Case IH 2060-17 (35.420.AB) - REEL CYLINDER LINE FITTING REEL ARM, 17FT (35) - HYDRAULIC SYSTEMS

1

84247305

CYLINDER,Double Acting, 24mm Rod, 251.5mm Stroke

Hydraulic, Incl 2

1шт.

2

84023914

SEAL KIT

1шт.

3

84247304

CYLINDER

Hydraulic

1шт.

4

47579357

Incl 23 - 25

TUBE

1шт.

5

47579355

TUBE

1шт.

6

47607847

TUBE

1шт.

7

47607844

TUBE

1шт.

8

47607845

TUBE

1шт.

9

86579673

HYD CONNECTOR,11/16" - 16 ORFS x M18 x 1.5 ORB

Incl 10, 11

1шт.

10

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

11

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

12

87381297

HYD CONNECTOR

1шт.

13

86592081

COUPLING, QUICK, FEM

1шт.

14

84431546

UNION,11/16"-16 ORFS

Incl 11

5шт.

15

87010704

BHD LOCK NUT,11/16"-16

2шт.

16

47431799

CLIP

9шт.

17

9514196

PIN,21.5mm OD x 79mm L

2шт.

18

86592085

DUST CAP

1шт.

19

370024

CIRCLIP,M20, Ext

Ring

2шт.

20

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

9шт.

21

47622249

TUBE

1шт.

22

47622261

TUBE

1шт.

23

NSS

NOT SOLD SEPARAT

Tube, Hydraulic, Incl in 4

1шт.

24

84052986

COLLAR,8mm ORFS

Sleeve

2шт.

25

84052987

TUBE NUT,11/16"-16 x 17mm L

2шт.
