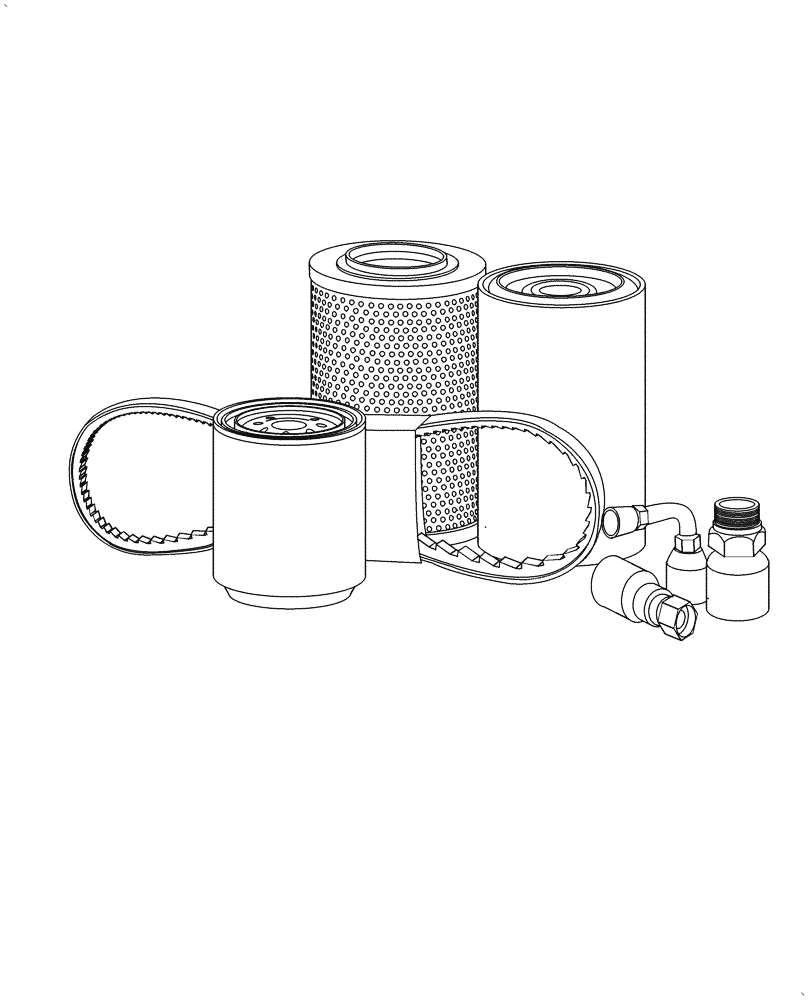

Запчасти Case IH 2060-17 (05.100.01[02]) - INITIAL STOCKING LIST, 2060-17 (05) - SERVICE & MAINTENANCE

1

47560577

CLIP

1шт.

2

80424230

BUSHING,22.6mm ID x 60mm OD x 38mm L

3шт.

3

84432661

BRACKET

2шт.

4

87283101

SPROCKET,15T

1шт.

5

80433517

FLANGE

2шт.

6

322360

BALL BEARING,35mm ID x 72mm OD x 19mm W

1шт.

7

84058833

CHAIN,#60, 104 Links x 19.05mm = 1981.2mm

2шт.

8

420410

BUSHING,30mm ID x 33.94mm OD x 30mm L

2шт.

9

921330

BELT

2шт.

10

84819431

SPACER

1шт.

11

9831274

ADJUSTMENT ROD

1шт.

12

47562785

CHAIN

2шт.

13

84431546

UNION,11/16"-16 ORFS

3шт.

14

86579673

HYD CONNECTOR,11/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

15

87381297

HYD CONNECTOR

1шт.

16

86548974

FLANGE,Bearing

2шт.

17

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

18

322360

BALL BEARING,35mm ID x 72mm OD x 19mm W

1шт.

19

86620026

FLANGED BEARING

2шт.

20

325106

BALL BEARING,30mm ID x 62mm OD x 18mm W

pls order 47577165 after 325106 use up

1шт.

21

84320112

FLANGE

2шт.

22

334065

V-BELT,31.75 mm W x 1211.00 mm L

3шт.

23

87605590

BEARING ASSY,35mm ID x 72mm OD x 19mm W

1шт.

24

86974088

FLANGE,Bearing

1шт.

25

87691794

COUPLING

1шт.

26

740602

CLAMP

1шт.

27

80740600

GUIDE

5шт.

28

80740603

CLAMP

1шт.

29

84058255

V-BELT,2815.00 mm L

5шт.

30

9811888

CONNECTING LINK

2шт.
