Запчасти Case IH 2060-15 (88.100.58[04]) - DIA KIT, VERTICAL KNIFE, KIT, RH, A FI (88) - ACCESSORIES

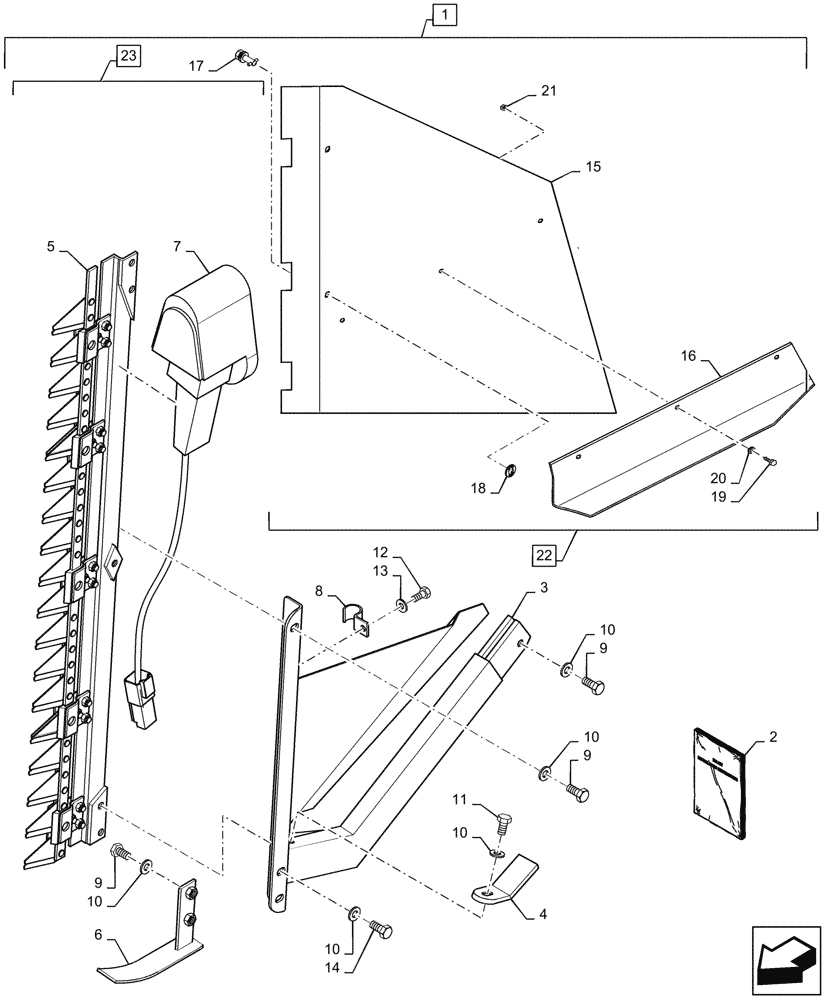

Схема запчастей Case IH 2060-15 - (88.100.58[04]) - DIA KIT, VERTICAL KNIFE, KIT, RH, A FI (88) - ACCESSORIES
7
6
16
19
10
14
3
1
17
13
10
8
15
18
11
9
10
9
22
20
10
5
21
2
9
4
12
10
23

Артикул

Название

Примечание

Количество

1

47864733

Vertical Knife, RH FI

DIA KIT, HARVESTER

1шт.

2

87533788

INSTRUCTION

Manual

1шт.

3

87533783

SUPPORT

RH Weld Assy

1шт.

4

87533774

SUPPORT

Flat

1шт.

5

47850429

Knife Assy

1шт.

6

87533779

GUIDE

Skid Weld Assy

1шт.

7

47521566

WIRE HARNESS

1шт.

8

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

9

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

Lock

7шт.

11

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

1шт.

12

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

1шт.

13

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

Lock

4шт.

14

388113

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

2шт.

15

87533786

SUPPORT

Guard

1шт.

16

87533787

SUPPORT

Guard

1шт.

17

87678250

LOCK

Lock

2шт.

18

9514605

LOCK WASHER,9.8mm ID x 18.5mm OD x 1.5mm Thk

2шт.

19

13276024

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 8.8, Full Thd

3шт.

20

412653

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

Lock

3шт.

21

353308

NUT,M6 x 1.0, Cl 8

Prev Torque

3шт.

22

47864730

Assy, Incl 15 - 21

GUARD

1шт.

23

47850430

Assy, Incl 5 - 7, 9 and 10

KNIFE

1шт.

Выбрано товаров: 23
