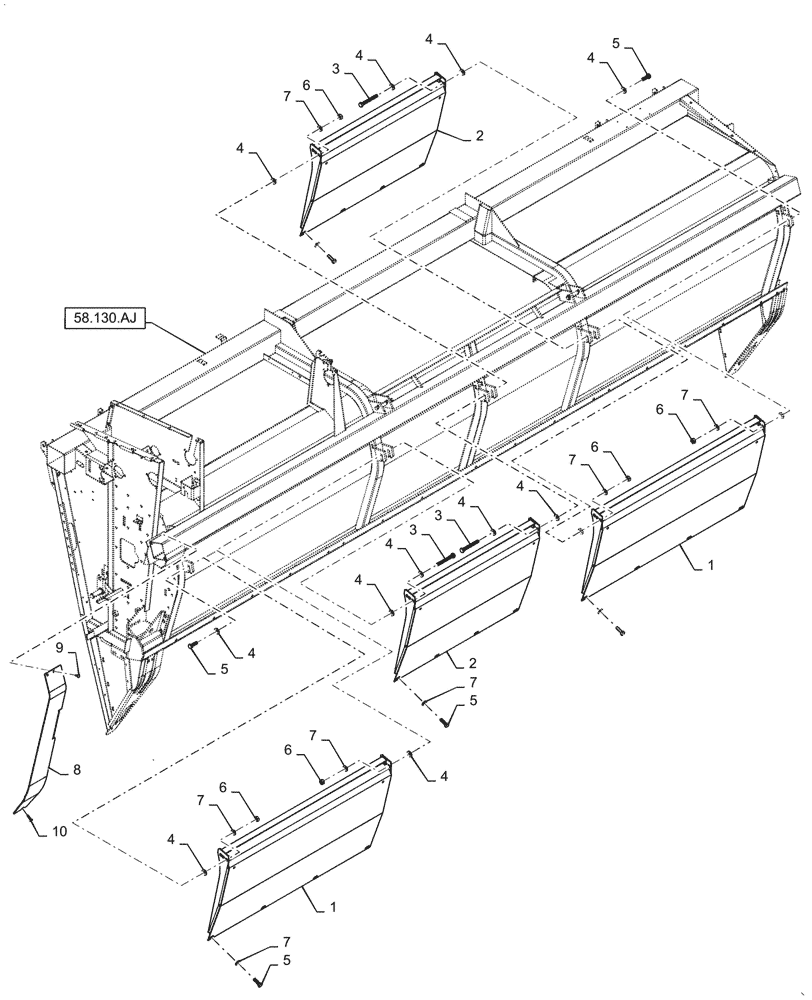

Запчасти Case IH 2060-15 (58.130.AQ) - SKID PLATE, 15FT (58) - ATTACHMENTS/HEADERS

1

47627617

Weld Assy, Skid, 15ft

SICKLE KIT

2шт.

2

47627073

Skid Weld Assy, Center

PLATE

2шт.

3

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

5шт.

4

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

14шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

30шт.

6

100016

NUT,M10 x 1.5, Cl 8

11шт.

7

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

21шт.

8

47906017

LH Glide

PLATE

1шт.

9

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

2шт.

10

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

1шт.
