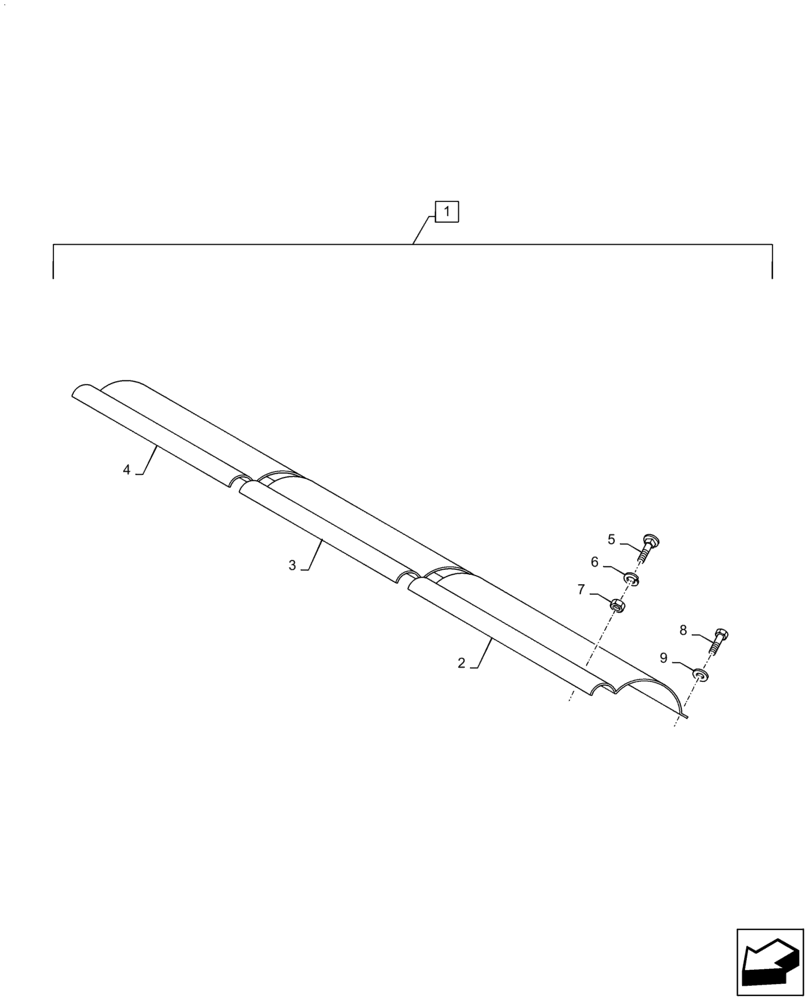

Запчасти Case IH 2060-15 (58.130.AI[01]) - AUGER, FEEDING PLATE, 15FT (58) - ATTACHMENTS/HEADERS

1

84095786

DIA KIT, HARVESTER

Feeding Plate Assy, Incl 2 - 9

1шт.

2

84441120

PLATE

1шт.

3

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

4

84441125

PLATE

1шт.

5

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

16шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

7

9706690

NUT,M8 x 1.25, Cl 8

16шт.

8

412684

SCREW,Phillips Drive, Round HD, M6.3 x 13mm

17шт.

9

140015

WASHER,6.4mm ID x 14mm OD x 1.6mm Thk

17шт.
