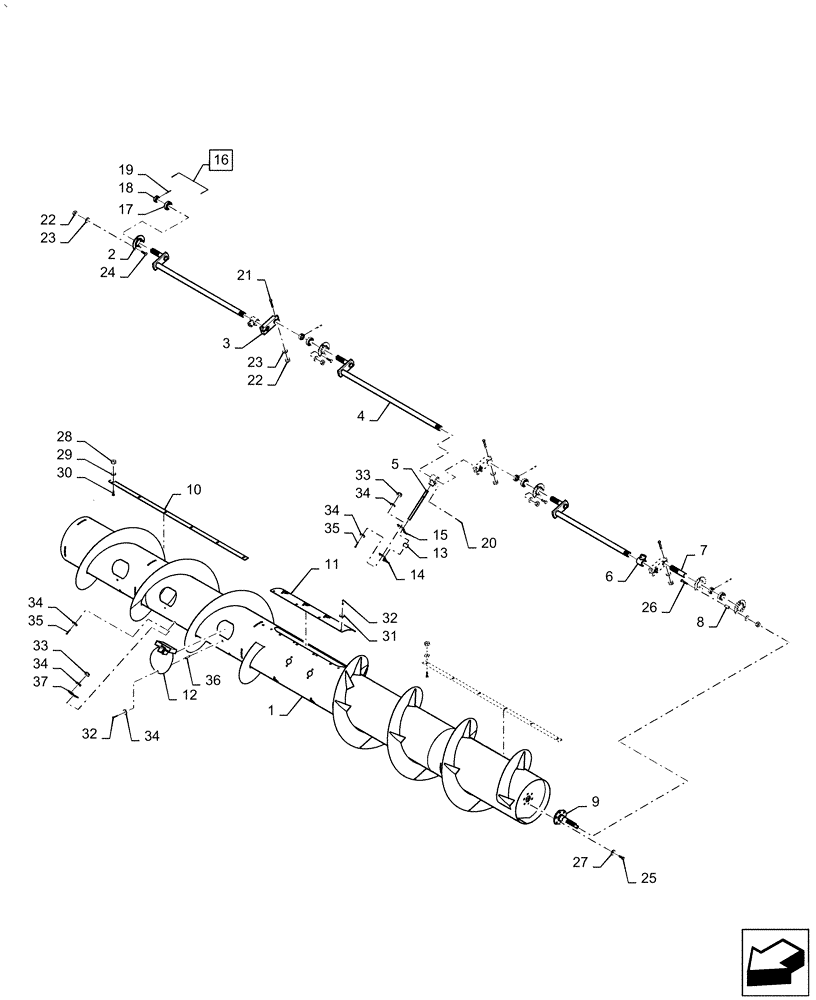

Запчасти Case IH 2060-15 (58.120.AD) - FEED AUGER, 15FT (58) - ATTACHMENTS/HEADERS

1

47515197

Auger Weld Assy, 15ft

AUGER

1шт.

2

86974088

FLANGE,Bearing

Flange, Spherical Bearing Housing

12шт.

3

740351

TRACK ROD ASSY

Link, Lift

5шт.

4

740380

SHAFT

Crank

1шт.

5

84161891

FINGER

11шт.

6

87691794

COUPLING

Joint

23шт.

7

740373

SHAFT

1шт.

8

342468

SPACER,10.5mm ID x 16mm OD x 16.5mm L

3шт.

9

84032891

SHAFT

1шт.

10

47691005

Plate, Adjusting, 15ft

SICKLE KIT

2шт.

11

47515198

COVER

1шт.

12

84440594

PLATE

Cover, Access

8шт.

13

80740600

GUIDE

11шт.

14

740602

CLAMP

Clamp

11шт.

15

80740603

CLAMP

11шт.

16

80325106

BEARING ASSY

Grain Elevator, Incl 17 - 19

6шт.

17

445927

BALL BEARING,30 mm ID x 60 mm OD x 18 mm

Bearing, Ball

1шт.

18

80212463

RING

Ring, Span

1шт.

19

86516064

SET SCREW,M6 x 6mm, Cl 12.9

Alloy Steel, Blower

1шт.

20

740591

SPRING,M10 x 67

Spring

11шт.

21

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

10шт.

22

100016

NUT,M10 x 1.5, Cl 8

28шт.

23

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

28шт.

24

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

15шт.

25

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

3шт.

26

73161469

BOLT,Hex, M10 x 55mm, Cl 8.8

3шт.

27

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

28

43362

NUT,M8 x 1.25, Cl 10

16шт.

29

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

30

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

16шт.

31

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

32

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

16шт.

33

353308

NUT,M6 x 1.0, Cl 8

Privilege Torque

38шт.

34

140015

WASHER,6.4mm ID x 14mm OD x 1.6mm Thk

84шт.

35

120100

BOLT,M6 x 20mm, Cl 8.8

38шт.

36

740622

THREADED INSERT

8шт.

37

747408

COVER

8шт.
