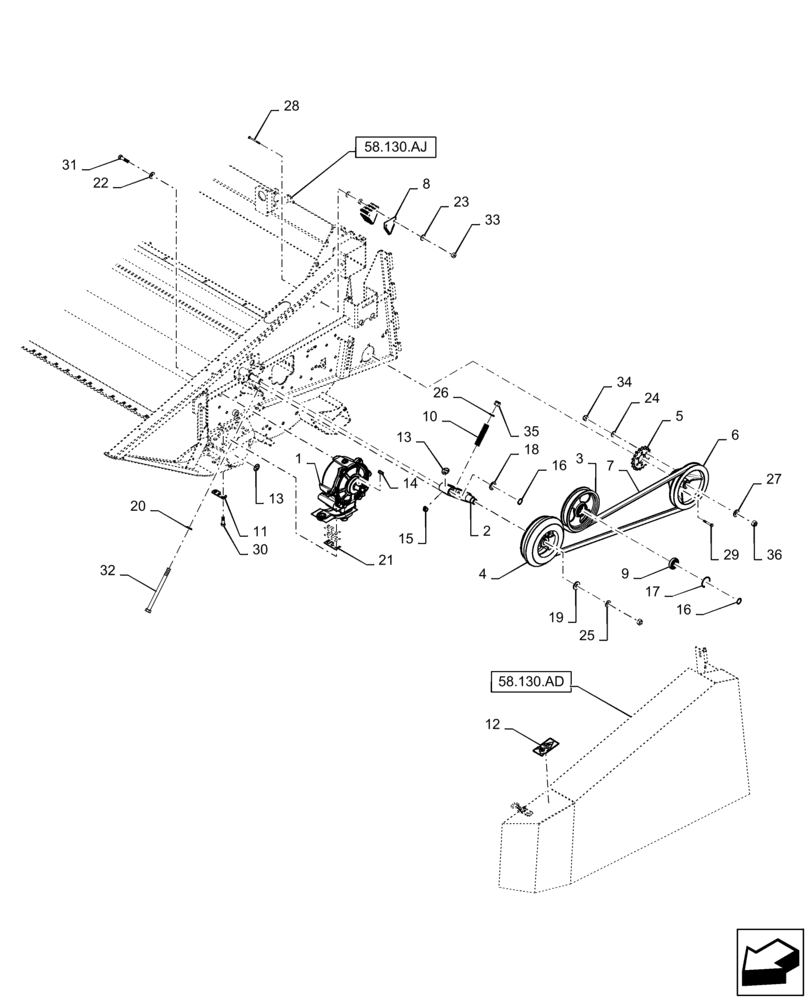

Запчасти Case IH 2060-15 (58.110.BA) - WOBBLE BOX DRIVE (58) - ATTACHMENTS/HEADERS

1

9837960

WOBBLE BOX

1шт.

2

87380705

ARM

Weld Assy

1шт.

3

751505

PULLEY

Metric

1шт.

4

87356040

PULLEY

Metric

1шт.

5

9819912

DRIVING SPROCKET

1шт.

6

84320714

PULLEY,232mm OD

1шт.

7

84058255

V-BELT,2815.00 mm L

Drive, Wobble Box

1шт.

8

84429103

KNIFE SECTION

18шт.

9

84188095

BALL BEARING,25mm ID x 52mm OD x 15mm W

Bearing, Ball

1шт.

10

440651

SPRING

Compression

1шт.

11

84077921

ADJUSTING PLATE

Washer

2шт.

12

84004734

WARNING DECAL

Caution

1шт.

13

84989464

DECAL

2шт.

14

170005

KEY,M8 x 7mm W x 25mm OAL

Square

1шт.

15

84814929

LUBE NIPPLE

Fitting

1шт.

16

370002

CIRCLIP,M25, External

Ring

2шт.

17

370011

CIRCLIP,M52 x 2mm Thk, Internal

1шт.

18

140104

WASHER,26mm ID x 45mm OD x 3mm Thk

1шт.

19

325594

WASHER,M17 x 40mm OD x 5mm Thk

1шт.

20

84053238

WASHER

Spherical

1шт.

21

754801

SHIM,32mm OD x 0.56mm Thk

6шт.

22

34945

WASHER,0.56" ID x 1.25" OD x 0.13" Thk

3шт.

23

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

25

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

26

86588503

WASHER,17mm ID x 28mm OD x 3mm Thk

1шт.

27

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

1шт.

28

397985

BOLT,Hex, M6 x 70mm, Cl 8.8, Full Thd

2шт.

29

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

6шт.

30

412037

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8

5шт.

31

412674

BOLT,Hex, M12 x 1.25 x 50mm, Cl 8.8

3шт.

32

84456232

BOLT

1шт.

33

9706755

NUT,M6, Cl 8

4шт.

34

86629542

NUT,M8 x 1.25, Cl 8.8

6шт.

35

412066

NUT,M16 x 2.0, Cl 8

1шт.

36

100020

NUT,M16 x 2.0, Cl 8

1шт.
