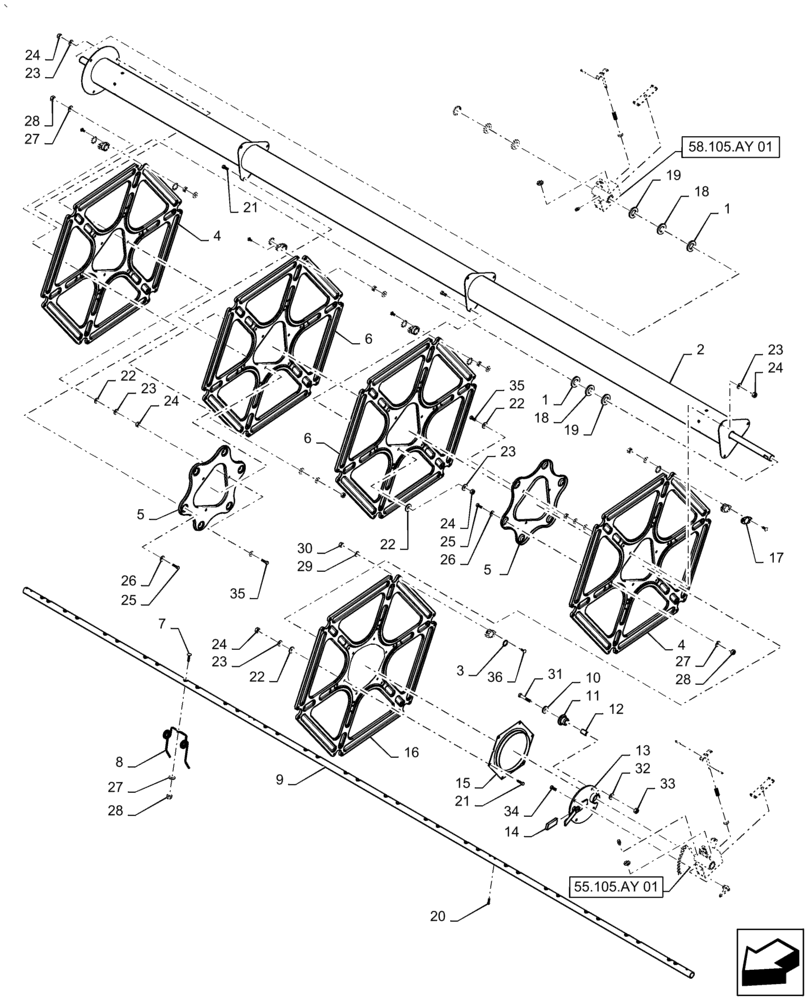

Запчасти Case IH 2060-15 (58.101.AF[01]) - REEL, 15FT (58) - ATTACHMENTS/HEADERS

1

324196

WASHER

2шт.

2

84447188

REEL

Axle Weld Assy, 15ft

1шт.

3

444211

WASHER,34.8mm ID x 45mm OD x 3mm Thk

48шт.

4

84032737

DISC

Reel

2шт.

5

9838272

DISC

Reinforcement

2шт.

6

84400172

DISC

Reel

2шт.

7

9814004

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 45mm, Cl 8.8

102шт.

8

9819750

REEL TINE

102шт.

9

84435211

TUBE

Tube Weld Assy, 15ft

6шт.

10

140085

WASHER,13mm ID x 38mm OD x 6.35mm Thk

4шт.

11

424230

BUSHING,Tapered Hat, 22.6mm ID x 40mm OD x 60mm OD x 38mm OAL

Tube

4шт.

12

436353

BUSHING,12.5mm ID x 22mm OD x 39mm OAL

Sleeve

4шт.

13

87754101

DISC

Weld Assy

1шт.

14

332809

HANDLE GRIP

Soft Trim

1шт.

15

84002761

DISC

1шт.

16

84058667

DISC

Reel Weld Assy

1шт.

17

84432661

BRACKET

6шт.

18

84024658

WASHER,36mm ID x 60mm OD x 4.42mm Thk

2шт.

19

84036395

WASHER,36mm ID x 66mm OD x 2.2mm Thk

2шт.

20

300416

COTTER PIN,M4 x 50

48шт.

21

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

12шт.

22

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

24шт.

23

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

24шт.

24

100016

NUT,M10 x 1.5, Cl 8

24шт.

25

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

12шт.

26

140041

WASHER,M8 x 28mm OD x 3mm Thk

12шт.

27

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

114шт.

28

9706690

NUT,M8 x 1.25, Cl 8

114шт.

29

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

60шт.

30

86629542

NUT,M8 x 1.25, Cl 8.8

60шт.

31

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

4шт.

32

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

33

9706685

NUT,M12 x 1.75, Cl 8

4шт.

34

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

35

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

6шт.

36

84157898

CARRIAGE BOLT,Sq Nk, M8 x 22mm, Cl 8.8, Full Thd

60шт.
