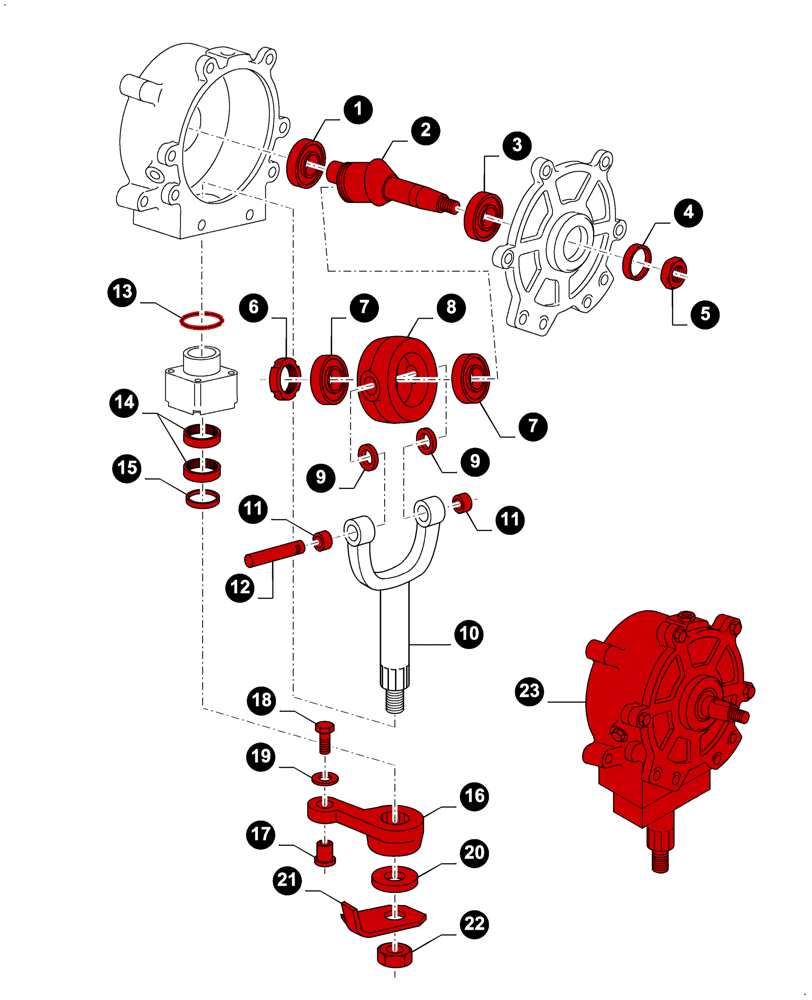

Запчасти Case IH 2050 (00.00GH024[01]) - MAINTENANCE PARTS, WOBBLE BOX (00) - GENERAL

1

9811397

BEARING, ROLLER, CYL,25mm ID x 62mm OD x 17mm W

1шт.

2

9501697

SHAFT

1шт.

3

9811632

BEARING, ROLLER, CYL,30mm ID x 72mm OD x 19mm W

1шт.

4

9513024

OIL SEAL,30mm ID x 40mm OD x 7mm Thk

1шт.

5

12164121

NUT,M16 x 1.5, Cl 10

1шт.

6

850119

NUT

1шт.

7

796504

TAPERED BEARING,50mm ID x 95mm OD x 21.75mm W

2шт.

8

850123

BEARING ASSY

1шт.

9

168100

SHIM,.036" Thk

2шт.

10

9513490

YOKE,M20 x 1.5

(11)

1шт.

11

709063

BUSHING,25.43mm ID x 28.73mm OD x 9.53mm L

2шт.

12

847547

PIN,25.41mm OD x 44.5mm L

2шт.

13

165216

O-RING,2.487" ID x 2.693" OD x 0.103"

1шт.

14

87021857

NEEDLE BEARING,Needle, 41.27mm ID x 50.8mm OD x 25.4mm W

2шт.

15

796503

OIL SEAL,41.27mm ID x 50.8mm OD x 6.39mm Thk

1шт.

16

84017247

ARM

(17), Serial Range: -C951

1шт.

16

87389510

ARM

(17), Start Serial: D952

1шт.

17

84017250

BUSHING,15.93mm ID x 32mm OD x 19.5mm L

1шт.

18

412681

BOLT,Hex, M16 x 1 x 60mm, Cl 10.9

1шт.

19

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

1шт.

20

850053

WASHER,20.5mm ID x 55mm OD x 6mm Thk

, Serial Range: -C951

1шт.

20

47471097

WASHER,20.5mm ID x 55mm OD x 6mm Thk

, Start Serial: D952

1шт.

21

9513487

PLATE

1шт.

22

100085

NUT,M20 x 1.5, Cl 8

1шт.

23

85000175

WOBBLE BOX

1шт.
