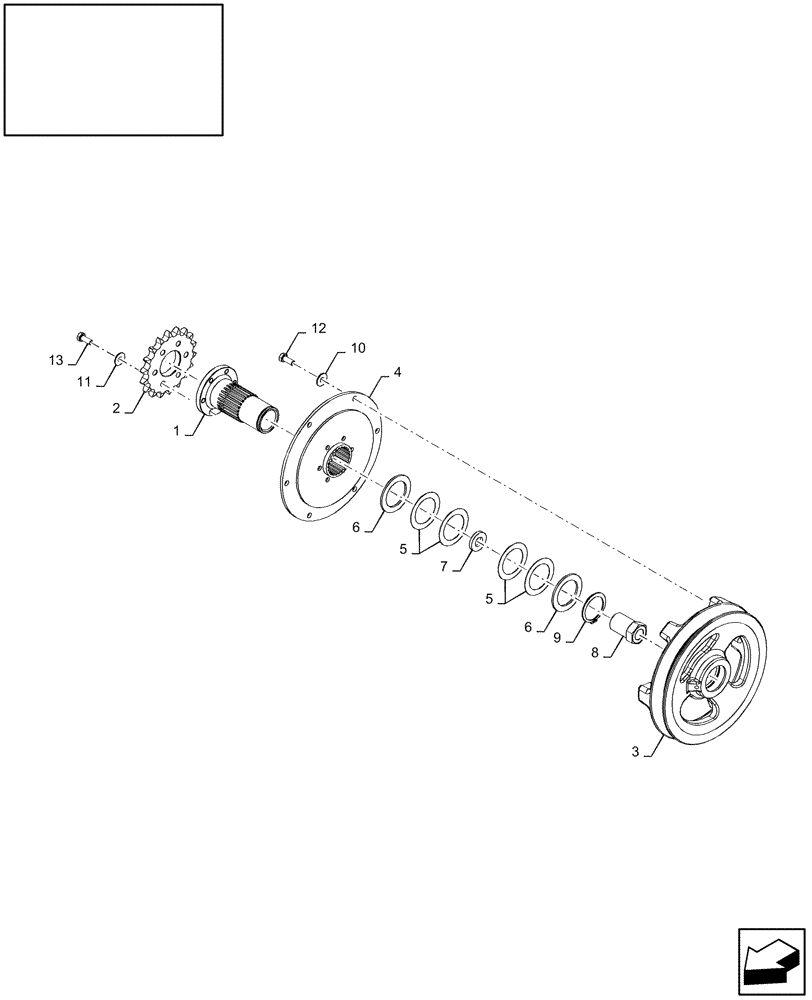

Запчасти Case IH 2050 (18.84286314[01]) - SERVICE KIT : HEADER DAMPER KIT (18) - ACCESSORIES

84286314

SERVICE KIT

1шт.

1

84418356

HUB

1шт.

2

9819912

DRIVING SPROCKET

1шт.

3

84292915

PULLEY

1шт.

4

84291541

CLUTCH DISC

CLUTCH DISK

1шт.

5

84349349

WASHER,45.5mm ID x 65mm OD x 0.5mm Thk

6шт.

6

84292909

WASHER,45.5mm ID x 65mm OD x 3.25mm Thk

2шт.

7

84293274

WASHER,16.5mm ID x 33mm OD x 5mm Thk

1шт.

8

84293278

NUT

1шт.

9

370007

SNAP RING,M45, Ext

1шт.

10

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

6шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

13

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.
